BizGlobeLink Max(GL-V3-BC)Product Specifications

Basic Specifications

project Specification Description
Function Traffic: support 2G/3G/4G/cat M networking
SMS: GL-V3-BC supports
Call: not supported
network See EIOTCLUB Network Coverage Table
Card Type Consumer grade plug-in card three-in-one three-cut card into card
Support Full-size (1FF)
Support Mini-SIM (2FF)
Support Micro-SIM (3FF)
Support Nano-SIM (4FF)
contact 6 pins
storage 380KB Maximum number of profiles:10
Standard SGP.21 RSP Architecture v2.3 SGP.22 RSP Technical Specification v2.3GSMA``SGP.24 RSP Compliance Process v2.3
Material PVC/ABS card base material for SIM card
temperature range Working temperature -25℃~85℃
size 85.6mm53.98mm0.76mm
weight about 3 grams

Selection table

PN Preinstalled eSIM Version Descriptions
2.01.040001166 null Consumer-grade triple-cut GSMA eUICC,
1FF/2FF/3FF/4FF, blank card without signature
Operational temperature:-20℃~85℃
2.01.040001169 GL-V3-BC Consumer-grade triple-cut GSMA eSIM,
1FF/2FF/3FF/4FF
IMSI : 20601, ICCID:893204
Operational temperature:-20℃~85℃
2.01.040001185 GL-V3-BC Consumer-grade triple-cut GSMA eSIM, 2MB storage space IMSI : 20601, ICCID:893204
Operational temperature:-20℃~85℃
2.01.040001189 GL-V3-BC Consumer-grade triple-cut GSMA eUICC,
1FF/2FF/3FF/4FF,
blank card with signature
Operational temperature:-20℃~85℃

Appearance specification

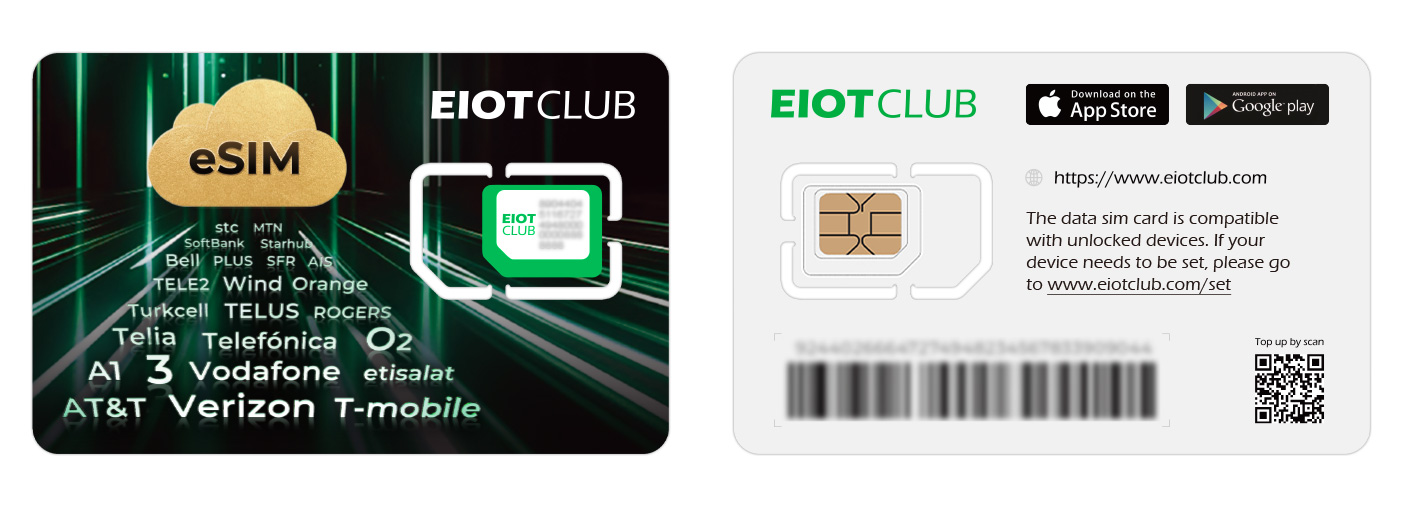

Consumer grade triple-cut eUICC card

1748363171926

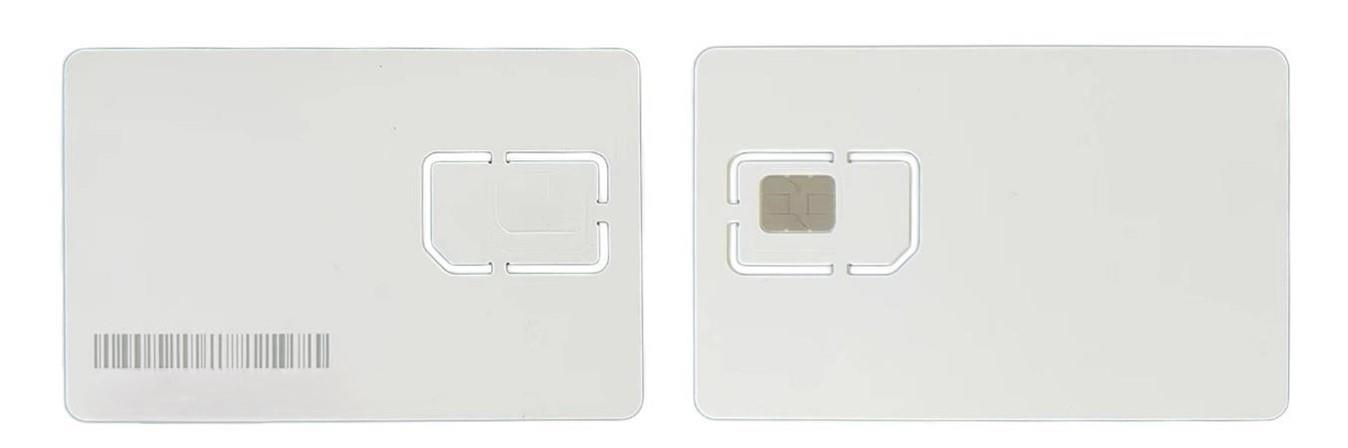

White card

1748447118239

Specifications:

  • 1FF Full-size ISO/IEC 7810:20003,ID-1
  • Length:85.60mm tolerance: 0.12mm
  • Width:53.98mm tolerance: 0.16mm
  • Thickness:0.76mm tolerance: 0.08mm

APN List

The first five digits of the IMSI number (MCCMNC) First six digits of ICCID number APN
20601 893204 america.bics Note: U.S. IP exports
bicsapn Note: EU IP exports
asia.bics Note: Singapore IP exports

Network Coverage Table

Region Country Network Supported Network Types
South America Argentina Movistar 2G/3G/4G/LTE-M
North America Bermuda Cellular One Bermuda 2G/3G/4G
South America Brazil TIM CELULAR S.A 2G/3G/4G
South America Brazil Vivo 2G/3G/4G/5G/LTE-M
North America Canada Rogers Communications Canada Inc 2G/3G/4G/LTE-M/5G
North America Canada Bell Mobility Canada 3G/4G/LTE-M/5G
South America Chile Telefonica Movil 2G/3G/4G
South America Chile Entel PCS Telecomunicaciones S.A 2G/3G/4G
South America Colombia Orbitel Servicios Internacionales S.A.S 2G/3G
South America Colombia COLOMBIA TELECOMUNICACIONES S.A. ESP 2G/3G/4G/LTE-M
South America Costa Rica Instituto Costarricense de Electricidad 2G/3G/4G
South America Costa Rica TELEFONICA COSTA RICA 2G/3G/4G
North America, Caribbean Dominican Republic ALTICE Dominicana sa 2G/3G/4G/5G
South America Ecuador OTECEL S.A 2G/3G/4G
South America El Salvador El Salvador Telefonica 2G/3G/4G
South America El Salvador DIGICEL S.A. de C.V. 2G/3G/4G
South America French Guiana Outremer Telecom 2G/3G/4G
South America French Guiana Digicel Mobile Antilles 2G/3G/4G
North America Greenland Tele Greenland A/S 2G/4G
Central America Guatemala Comcell Guatemala 2G/3G/4G
South America Guinea Guyana Telephone & Telegraph Co. 2G/3G
South America Guinea Digicel Guyana 2G/3G
Central America Honduras CELTEL 2G/3G/4G
North America Mexico AT&T Comercializacion Movil SRLCV 2G/3G/4G/5G
North America Mexico Movistar Mexico 2G/3G/4G/LTE-M
Central America Nicaragua Telefonica Moviles-- Movistar 2G/3G/4G
Central America Panama Telefonica Moviles-- Movistar 2G/3G/4G
South America Paraguay Telecel S.A. 2G/3G
South America Peru Telefonica del Peru S.A 2G/3G/4G
North America, Caribbean Trinidad And Tobago Digicel Trinidad & Tobago 2G/3G/4G
North America United States AT&T Mobility 4G/LTE-M/5G/NB-IOT
North America United States T-Mobile USA 2G/3G/4G/LTE-M/5G/NB-IOT
South America Uruguay Telefonica Moviles Del Uruguay S.A. 2G/3G/4G/5G/LTE-M
South America Venezuela Venezuela TELCEL 2G/3G
Rest of Europe Albania Vodafone Albania Sh.A 2G/3G/4G
Rest of Europe Armenia VEON Armenia CJSC 2G/3G/4G
Rest of Europe Armenia MTS Armenia CJSC 2G/3G/4G
Europe Austria Mobilkom Austria AG 2G/3G/4G/5G/LTE-M/NB-IOT
Europe Austria Hutchison Drei Austria GmbH 2G/3G/4G/5G
Rest of Europe Azerbaijan Azercell Telekom MMC 2G/3G/4G
Rest of Europe Azerbaijan Bakcell Llc 2G/3G/4G/5G
Rest of Europe Belarus MDC VELCOM 2G/3G/4G
Rest of Europe Belarus Belarusian Telecommunications Network CJSC 2G/3G/4G
Europe Belgium Proximus-- Societe Anonyme de Droit Public (mobile) 2G/3G/4G/NB-IOT
Rest of Europe Bosnia And Herzegovina BH Telecom-- Joint Stock Company 2G/3G/4G
Rest of Europe Bosnia And Herzegovina Mtel JSC 2G/3G/4G
Europe Bulgaria Telenor Bulgaria EAD 2G/3G/4G/5G
Europe Bulgaria Mobiltel EAD 2G/3G/4G/5G
Europe Croatia Vipnet 2G/3G/4G/5G
Europe Croatia TELE2 2G/3G/4G/5G
Europe Cyprus MTN Cyprus 2G/3G/4G/5G
Europe Cyprus Cyprus Telecommunications Authority 2G/3G/4G/5G
Europe Czech Republic Vodafone Czech Republic-- a.s. 2G/4G/5G/NB-IOT/LTE-M
Europe Czech Republic O2 Czech Republic a.s. 2G/4G/5G
Europe Denmark Hi3G 3G/4G/5G
Europe Denmark TDC A/S 2G/4G/5G/LTE-M
Europe Estonia Estonia EMT 2G/4G/5G/LTE-M
Europe Estonia Tele2 Eesti AS 2G/3G/4G/5G
Rest of Europe Faroe Islands Faroese Telecom 2G/3G/4G/5G
Rest of Europe Faroe Islands Vodafone Faroe Islands 2G/3G/4G
Europe Finland Alands Telekommunikation Ab 2G/3G/4G/5G
Europe Finland Elisa Oyj 2G/4G/5G/LTE-M/NB-IOT
Europe Finland Telia Carrier Finland Oy 2G/4G/5G/LTE-M
Europe France Free Mobile SAS 3G/4G/5G
Europe France Societe Francaise du Radiotelephone -SFR sa 2G/3G/4G/5G/NB-IOT/LTE-M
Europe France Orange 2G/3G/4G/LTE-M/5G
Europe France BOUYGUES TELECOM France 2G/3G/4G/5G
Rest of Europe Georgia Veon Georgia LLC 2G/3G/4G/5G
Rest of Europe Georgia Geocell 2G/3G/4G/5G
Europe Germany Telefonica Germany GmbH & Co. OHG 2G/4G/LTE-M/5G/NB-IOT
Europe Germany Vodafone GmbH 2G/4G/5G/NB-IOT/LTE-M
Rest of Europe Gibraltar Gibtelecom Ltd. 2G/3G/4G
Europe Greece Wind Hellas Telecommunications 2G/3G/4G/5G
Europe Greece Vodafone Panafon Telecommunications Comp SA 2G/3G/4G/5G/NB-IOT/LTE-M
Rest of Europe Guernsey Sure (Guernsey) Limited 2G/3G/4G
Europe Hungary Pannon GSM 2G/4G/5G
Europe Hungary Vodafone 2G/4G/LTE-M/5G
Europe Iceland Siminn hf. 2G/3G/4G/5G
Europe Iceland Syn hf 2G/3G/4G/5G
Europe Ireland Meteor Mobile Communications Ltd. 2G/3G/4G/5G
Europe Ireland Hutchison 3G Ireland Ltd 2G/3G/4G/LTE-M/NB-IOT
Rest of Europe Isle of Man Manx Telecom 2G/3G/4G
Europe Italy Wind Tre S.p.A. 2G/3G
Europe Italy Wind Tre S.p.A. 2G/3G/4G
Europe Italy Vodafone Italia S.p.A 2G/4G/NB-IOT/5G
Europe Italy Iliad Italia S.p.A 3G/4G
Rest of Europe Jersey JT (Jersey) Ltd 2G/3G/4G/5G
Rest of Europe Kosovo IPKO TELECOMMUNICATIONS 2G/3G/4G
Rest of Europe Kosovo Monaco Telecom - Vala Kosova 2G/3G/4G
Europe Latvia SIA Tele2 2G/3G/4G/5G
Europe Latvia BITE Latvija SIA 2G/3G/4G
Europe Latvia Latvijas Mobilais Telefons 2G/3G/4G/LTE-M/NB-IOT
Europe Liechtenstein Liechtenstein Mobilkom 2G/4G
Europe Liechtenstein Liechtenstein Salt (Liechtenstein) AG 2G/3G/4G
Europe Lithuania Tele2 UAB 2G/3G/4G/5G
Europe Lithuania Telia Lietuva AB 2G/4G/5G
Europe Lithuania UAB Bite Lietuva 2G/3G/4G
Europe Luxembourg POST Luxembourg 2G/4G/LTE-M/5G
Europe Luxembourg Tango SA 2G/4G/5G
Rest of Europe Macedonia VIP Operator Dooel Skopje 2G/3G/4G
Rest of Europe Macedonia T-Mobile Macedonia 2G/3G/4G
Europe Malta Vodafone Malta Ltd. 2G/3G/4G
Europe Malta GO MOBILE Communication 2G/3G/4G/5G
Rest of Europe Moldova JVC Moldcell JSC 2G/3G/4G
Rest of Europe Moldova Mold Telecom 3G/4G
Rest of Europe Montenegro Telenor llc Podgorica 2G/3G/4G/5G
Rest of Europe Montenegro T-Mobile Montenegro 2G/4G/5G
Europe Netherlands KPN Mobile BV 2G/4G/LTE-M
Europe Netherlands Vodafone Libertel BV 2G/4G/5G/NB-IOT/LTE-M
Europe Norway TeliaSonera Norge AS 2G/4G/5G/LTE-M
Europe Norway TELENOR Global Services AS 2G/4G/LTE-M/5G/NB-IOT
Europe Poland Orange Polska S.A. 2G/3G/4G/5G/LTE-M
Europe Poland Polkomtel SP. Z O.O. 2G/3G/4G/5G
Europe Poland P4 Sp. Z.o.o 2G/3G/4G/5G
Europe Portugal NOS Comunicacoes sa 2G/3G/4G/5G/LTE-M
Europe Portugal MEO - Servicos de Comunicacoes e Multimedia-- S.A. 2G/4G/LTE-M/5G
Europe Reunion Orange Reunion 2G/3G/4G
Europe Reunion Societe Reunionnaise du Radiote l phone 2G/3G/4G
Europe Romania Vodafone Romania SA 2G/3G/4G/5G/LTE-M/NB-IOT
Europe Romania Orange Romania SA 2G/3G/4G/LTE-M/5G
Rest of Europe Russia PJSC Vimpel-Communication Vimpelcom 2G/3G/4G
Rest of Europe Serbia Telekom Srbija a.d. 2G/3G/4G
Europe Slovakia O2 Slovakia-- s.r.o. 2G/3G/4G/5G
Europe Slovakia Orange Slovensko 2G/4G/LTE-M/5G
Europe Slovenia Telemach-- sirokopasovne komunikacije d.o.o 2G/3G/4G/5G
Europe Slovenia Mobitel 2G/4G/5G
Europe Spain Vodafone Espana S.A.U. 2G/4G/NB-IOT/LTE-M/5G
Europe Spain Orange Espagne S.A.U. 2G/3G/4G/5G/LTE-M
Europe Spain Telefonica de Espana S.A.U. 2G/3G/4G/5G/LTE-M/NB-IOT
Europe Spain Xfera Moviles-- S.A 2G/3G/4G
Europe Sweden Tele2 Sverige AB XX1149 2G/3G/4G/5G/LTE-M/NB-IOT
Europe Sweden Telia Sonera Mobile Networks AB 2G/4G/LTE-M
Europe Sweden Telenor Sverige AB 2G/3G/4G/LTE-M/5G/NB-IOT
Europe Switzerland Salt Mobile SA 2G/3G/4G/5G
Europe Switzerland Sunrise Communications AG 2G/3G/4G/5G/LTE-M
Rest of Europe Turkey AVEA .Iletisim Hizmetleri A.S 2G/3G/4G/5G
Rest of Europe Turkey Turkcell Iletisim Hizmetleri A.S 2G/3G/4G/5G/LTE-M
Rest of Europe Ukraine Lifecell LLC 2G/3G/4G
Rest of Europe Ukraine KYIVSTAR Private Joint Stock Company 2G/3G/4G
Europe United Kingdom Vodafone Ltd. 2G/4G/5G/NB-IOT
Europe United Kingdom Hutchison 3G UK Ltd 3G/4G/5G
Asia Bangladesh Banglalink Digital Communications Ltd. 2G
Asia Brunei DST Communications Sdn.Bhd 2G/3G/4G
Southeast Asia Cambodia Smart Axiata Co.-- Ltd. 2G/4G
Asia China China United Network Communications Corporation Ltd 2G/3G/4G/5G
Asia China China Mobile 2G/3G/4G/5G
Asia Hong Kong SmarTone Mobile Communications Ltd 2G/3G/4G
Asia Hong Kong CSL Limited 2G/3G/4G/5G
Southeast Asia Indonesia PT. Telekomunikasi Selular 2G/4G
Southeast Asia Indonesia PT INDOSAT Tbk 2G/4G/5G
Asia Japan NTT DOCOMO 3G/4G/5G
Asia Japan Softbank Corp 4G/LTE-M/5G
Central Asia Kazakhstan KCell 2G/3G/4G
Central Asia Kazakhstan KAR-TEL LLP 2G/3G/4G
Central Asia Kyrgyzstan Sky Mobile LLC 2G/3G/4G
Central Asia Kyrgyzstan NURTelecom LLC 2G/3G/4G
Asia Macao Hutchison 3G/4G
Asia Macao Companhia de Telecomunicacoes de Macau SARL 3G/4G
Southeast Asia Malaysia Maxis Mobile Services Sdn Bhd 2G/4G
Asia Mongolia Unitel 2G/3G/4G
Asia Mongolia Mongolia Mobicom 2G/3G/4G
Asia Pakistan Pakistan Mobile Communications Limited (PMCL) 2G/3G
Asia Philippines Globe Telecom-- Inc. 2G/4G/5G/LTE-M
Asia Singapore Singtel Mobile Singapore Pte Ltd 3G/4G/LTE-M/5G
Asia Singapore M1 Limited 3G/4G
Asia South Korea SK Telecom 3G/4G/LTE-M/5G
Asia South Korea KT Corporation 3G/4G/5G/LTE-M
Asia Taiwan Chunghwa Telecom Co.-- Ltd.-- Mobile 3G/4G/5G/LTE-M
Asia Taiwan Taiwan Mobile 3G/4G/5G
Central Asia Tajikistan TACOM LLC 2G/3G
Central Asia Tajikistan Indigo-Tajikistan 2G/3G/4G
Southeast Asia Thailand Advanced Wireless Network Company Limited 2G/3G/4G/5G
Southeast Asia Thailand True Move H Universal Communication Co.-- Ltd. 2G/3G/4G/5G
Central Asia Uzbekistan FE COSCOM LLC 2G/3G/4G/5G
Central Asia Uzbekistan Unitel LLC 2G/3G/4G
Asia Viet Nam Mobifone Corporation 2G/3G/4G
Asia Viet Nam Viettel Telecom 2G/4G/5G/NB-IOT
North Africa Algeria Orascom Telecom Algerie SPA 2G/3G/4G
North Africa Algeria ATM Mobilis 2G/3G/4G
Africa Benin MTN Benin 2G/3G/4G
Africa Botswana Orange Botswana (pty)Ltd 2G/3G/4G
Africa Botswana Mascom Wireless Botswana (Pty) 2G/3G
Africa Burkina Faso Office national des telecommunications (ONATEL) 2G/3G/4G
Africa Burkina Faso Orange Burkina Faso S.A. 2G/3G
Africa Cameroon Cameroon Orange 2G/3G/4G
Africa Cameroon MTN Cameroon 2G/3G/4G
Africa Central African Republic ATLANTIQUE TELECOM CENTRAFRIQUE SA 2G/3G
Africa Central African Republic Orange Centrafrique 2G/3G
Africa Chad Millicom Chad 2G/3G/4G
Africa Chad Celtel Tchad 2G/3G/4G
Africa Congo Airtel Congo SA 2G/3G/4G
Africa Congo MTN Congo Brazzaville 2G/3G
Africa Democratic Republic Of The Congo Airtel CONGO RDC SA 2G/3G/4G
Africa Democratic Republic Of The Congo Orange SA 2G/3G/4G
North Africa Egypt Vodafone Egypt Telecommunications S.A.E. 2G/3G/4G/5G
North Africa Egypt Etisalat Misr 2G/3G/4G
Africa Eswatini Swazi Mobile Ltd 2G/3G
Africa Eswatini MTN Swaziland 2G/3G/4G
Africa Gabon ZAIN GABON SA 2G/3G/4G
Africa Gabon Libertis sa 2G/3G/4G
Africa Ghana Ghana Telecommunications Company Limited 2G/3G/4G
Africa Ghana MTN Ghana 2G/3G/4G
Africa Guinea Orange Guinea SA 2G/3G
Africa Guinea MTN Guinea Conakry 2G/3G
Africa Guinea- Bissau MTN Guinea Bissau 2G/3G
Africa Guinea- Bissau Orange Bissau 2G/3G
Africa Ivory Coast Orange Ivory Coast 2G/3G/4G
Africa Ivory Coast MTN Ivory Coast 2G/3G/4G
Africa Kenya Safaricom Limited 2G/3G/4G
Africa Kenya Airtel Networks Kenya Ltd. 2G/3G/4G
Africa Lesotho VODACOM 2G/3G/4G
Africa Liberia Lonestar Communication 2G/3G/4G
Africa Madagascar Orange Madagascar 2G/3G/4G
Africa Madagascar Airtel Madagascar 2G/3G/4G
Africa Madagascar Telecom Malagasy sa 2G/3G/4G
Africa Malawi Zain Malawi Ltd. 2G/3G/4G
Africa Mauritania La Mauritano-Tunisienne des telecommunications S.A. 2G/3G
Africa Mauritania Mauritel 2G/3G
Africa Mauritius Cellplus Mobile Communications Ltd 2G/3G/4G/5G
North Africa Morocco Medi Telecom SA 2G/3G/4G
North Africa Morocco ITISSALAT AL MAGHRIB S.A. 2G/3G/4G
Africa Mozambique MOVITEL-- SA 2G/3G/4G
Africa Mozambique Vodacom Mozambique (VM-- SA) 2G/3G
Africa Namibia Powercom (Pty) Limited 2G/3G
Africa Niger Celtel Niger S.A 2G/3G
Africa Niger Orange 2G/3G
Africa Nigeria MTN Nigeria 2G/3G/4G/5G
Africa Nigeria Emerging Markets Telecommunication Services Ltd. 2G/3G/4G
Africa Nigeria Airtel Networks Ltd. 2G/3G/4G
Africa Rwanda Tigo Rwanda 2G/3G
Africa Rwanda Airtel Rwanda Ltd. 2G/3G
Africa Rwanda MTN Rwandacell Ltd. 2G/3G/4G
Africa Senegal Sentel gsm SA (TIGO) 2G/3G/4G
Africa Senegal Orange Sonatel SA 2G/3G/4G
Africa South Africa Vodacom(Pty)Ltd. 2G/3G/4G
Africa South Africa Mobile Telephone Networks (Pty) Ltd. 2G/3G/4G/5G
Africa South Sudan MTN South Sudan 2G/3G
Africa Sudan MTN Sudan 2G/3G/4G
Africa Tanzania Airtel Tanzania Limited 2G/3G/4G
Africa Tanzania Vodacom Tanzania PLC 2G/3G/4G/5G
North Africa Tunisia Ooredoo Tunisie S.A. 2G/3G/4G
North Africa Tunisia Orange Tunisia 2G/3G/4G
Africa Uganda MTN Uganda 2G/3G/4G
Africa Uganda Zain Uganda Ltd. 2G/3G/4G
Middle East Bahrain Zain (Bahrain) B.S.C. (zain BH) 2G/3G/4G/5G
Middle East Bahrain VIVA Bahrain 2G/4G/5G
Middle East Israel Partner Communications Company Ltd. 2G/3G/4G
Middle East Israel Wataniya palestine Mobile Pelephone Communication LTD 2G/3G/4G/5G/LTE-M/NB-IOT
Middle East Israel Hot Mobile Ltd 3G/4G/5G/LTE-M
Middle East Kuwait Kuwait Telecom Company 2G/3G/4G/5G
Middle East Kuwait "Mobile Telecommunications Company ""ZAIN""" 2G/3G/4G/5G
Middle East Palestine JAWALL 2G
Middle East Qatar Vodafone Qatar Q.S.C. 2G/3G/4G/5G
Middle East Qatar Ooredoo Q.P.S.C. 2G/3G/4G/5G
Middle East Saudi Arabia ZAIN KSA 2G/3G/4G/5G
Middle East United Arab Emirates Emirates Integrated Telecom. Company - Du 2G/3G/4G/5G
Oceania Australia Telstra Australia Ltd 3G/4G/LTE-M
Oceania Australia Optus Mobile Pty Ltd 3G/4G/5G
Oceania Fiji Vodafone Fiji Limited 2G/3G/4G
Oceania Fiji Digicel Fiji Limited 2G/3G/4G
Oceania Guam PTI Pacifica 2G/4G
Oceania New Zealand Vodafone New Zealand Limited 2G/3G/4G/5G/LTE-M
Oceania Papua New Guinea Digicel (PNG) Limited 2G/3G/4G
Oceania Papua New Guinea BMobile Limited 2G
Oceania Tonga Digicel Tonga Limited 2G/3G/4G
Oceania Vanuatu Digicel Vanuatu 2G/3G/4G
Oceania Western Samoa Digicel Western Samoa 2G/3G/4G

Package specification

1748447636923

PN: 2.00.030000026 SKU: X004AYVSC7 Preset:100MB/30day Global plan-T-class1 Inside the packaging: 1 SIM card (PN: 2.01.040001169)

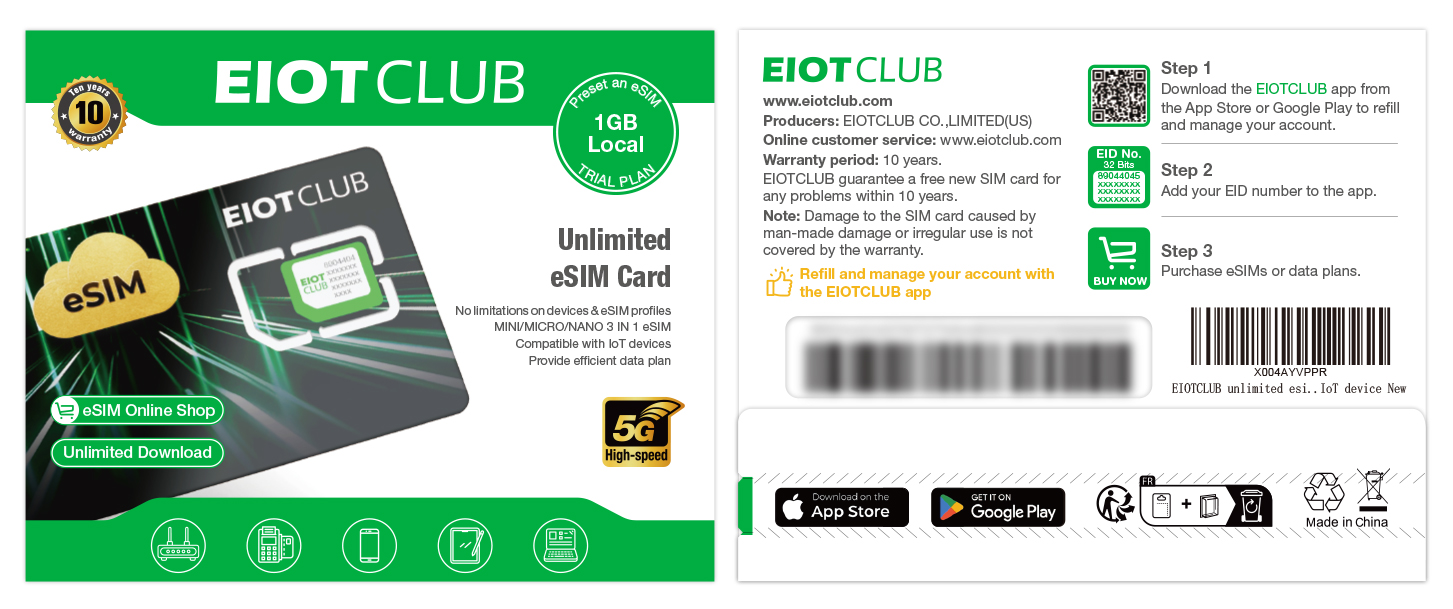

1748447760594

PN: 2.00.030000027 SKU: X004AYVPPR Preset:1GB/30day Local plan-T-class1 Inside the packaging: 1 SIM card (PN: 2.01.040001169)

1748447796864

PN: 2.00.030000028 SKU: X004AYVSY5 Preset:1GB/360day -Local 100MB/360day-Global plan-T-class1 Inside the packaging: 1 SIM card (PN: 2.01.040001169)
