BizGlobeLink Pro（TN-V3-BC）Product Specifications
Basic Specifications
| project | Specification Description |
|---|---|
| Function | Traffic: support 2G/3G/4G/cat M networking SMS: not supported by default Call: not supported |
| network | See EIOTCLUB Network Coverage Table |
| Card Type | Consumer grade plug-in card three-in-one three-cut card into card Support Full-size (1FF) Support Mini-SIM (2FF) Support Micro-SIM (3FF) Support Nano-SIM (4FF) |
| contact | 6 pins |
| storage | 64KB |
| Standard | ETSI TS 102 221 (Class A, B, C) ISO7816 |
| Material | PVC/ABS card base material for SIM card |
| temperature range | Working temperature -25℃~85℃ |
| size | 85.6mm53.98mm0.76mm |
| weight | about 3 grams |
Selection table
| PN | Preinstalled eSIM Version | Descriptions |
|---|---|---|
| 2.01.040001190 | TN-V3-W | Consumer-grade triple-cut GSMA eUICC,1FF/2FF/3FF/4FF IMSI : 45400/90131/20801/311588/45435/90101 ICCID: 898523 Operational temperature：-20℃~85℃ |

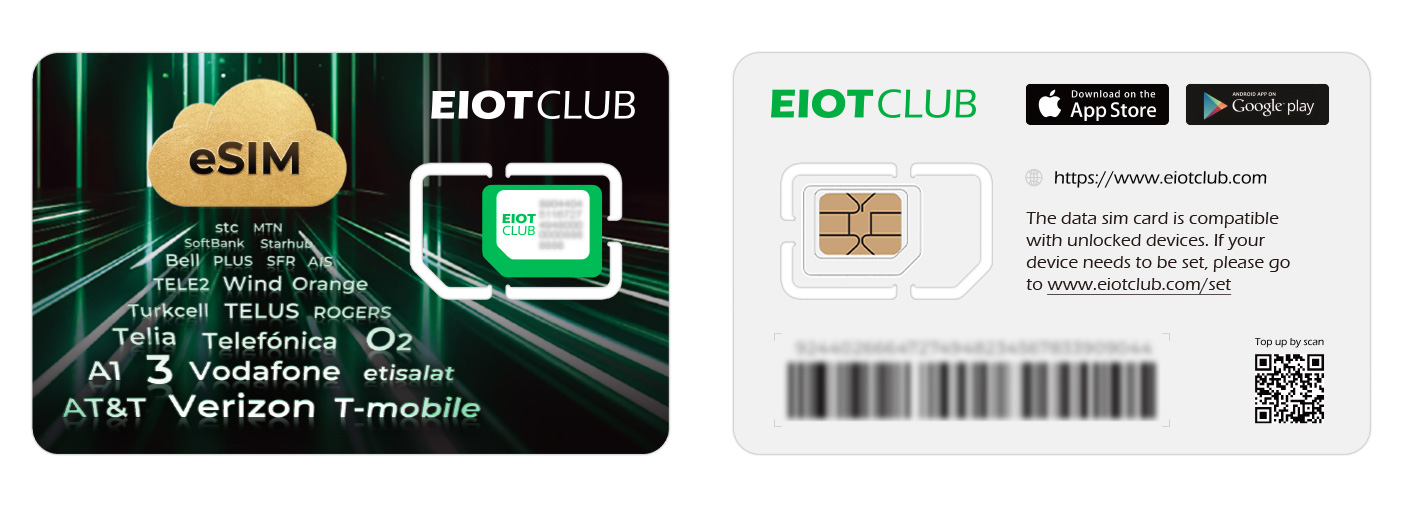

Appearance specification
Specifications:
- 1FF Full-size ISO/IEC 7810:20003,ID-1
- Length:85.60mm tolerance: 0.12mm
- Width:53.98mm tolerance: 0.16mm
- Thickness:0.76mm tolerance: 0.08mm
APN List
| The first five digits of the IMSI number (MCCMNC) |
First six digits of ICCID number | APN |
|---|---|---|
| 45400/90131/20801/311588/45435/90101 | 898523 | wbdata |
Network Coverage Table
Note: SIM has local networks in Australia, UAE, Japan, USA, Singapore, Netherlands and Germany.
| Region | Country | Network | Supported Network Types |
|---|---|---|---|
| North America | United States | AT&T Mobility | 4G/LTE-M/5G/NB-IOT |
| North America | United States | T-Mobile USA | 2G/3G/4G/LTE-M/5G/NB-IOT |
| North America | United States | Verizon | 4G/LTE-M/5G/NB-IOT |
| North America | Canada | Bell Mobility Inc. | 3G/4G/LTE-M/5G |
| North America | Canada | Rogers | 2G/3G/4G/LTE-M/5G |
| North America | Canada | Telus | 3G/4G/LTE-M/5G/NB-IOT |
| Europe | Andorra | Servei de Telecomunicacions d'Andorra (STA) | 2G/3G/4G/LTE-M/5G/NB-IOT |
| Europe | Austria | A1 Telekom Austria AG (former: Mobilkom) | 2G/3G/4G/5G/LTE-M/NB-IOT |
| Europe | Austria | Hutchison Drei Austria GmbH | 2G/3G/4G/5G |
| Europe | Belgium | Proximus PLC | 2G/3G/4G/5G/LTE-M/NB-IOT |
| Europe | Belgium | ORANGE Belgium nv/SA | 2G/3G/4G/5G/LTE-M/NB-IOT |
| Europe | Belgium | Telenet Group BVBA/SPRL (Base) | 2G/3G/4G/5G |
| Europe | Bulgaria | M-Tel Mobiltel EAD (VIP) | 2G/3G/4G/5G |
| Europe | Bulgaria | Vivacom | 2G/3G/4G/5G |
| Europe | Bulgaria | Telenor Bulgaria EAD | 2G/3G/4G/5G |
| Europe | Croatia | VIPnet d.o.o. | 2G/3G/4G/5G |
| Europe | Croatia | Tele2 Croatia | 2G/3G/4G/5G |
| Europe | Cyprus | MTN Ltd | 2G/3G/4G/5G |
| Europe | Cyprus | Cyprus Telecommunications Authority | 2G/3G/4G/5G |
| Europe | Cyprus | PrimeTel PLC | 2G/3G/4G/5G |
| Europe | Czech Republic | Vodafone Czech Republic-- a.s. | 2G/4G/5G/NB-IOT/LTE-M |
| Europe | Denmark | Telenor A/S | 2G/4G/LTE-M/5G/NB-IOT |
| Europe | Denmark | TDC Mobil A/S | 2G/4G/5G/LTE-M |
| Europe | Denmark | Telia Nattjanster Norden AB | 2G/4G/5G |
| Europe | Denmark | Hi3G Denmark Aps | 2G/3G/4G/5G |
| Europe | Estonia | Telia Eesti AS | 2G/4G/5G/LTE-M |
| Europe | Estonia | Tele2 Eesti AS | 2G/3G/4G/5G |
| Europe | Finland | DNA Plc | 2G/4G/LTE-M/5G/NB-IOT |
| Europe | Finland | Telia Finland | 2G/4G/5G/LTE-M |
| Europe | France | Free Mobile | 3G/4G/5G |
| Europe | France | SFR | 2G/3G/4G/5G/NB-IOT/LTE-M |
| Europe | France | Orange France | 2G/3G/4G/LTE-M/5G |
| Europe | France | Bouygues Telecom | 2G/3G/4G/5G |
| Europe | Germany | Telefonica Germany GmbH & Co. OHG | 2G/4G/LTE-M/5G/NB-IOT |
| Europe | Germany | Vodafone D2 GmbH | 2G/4G/5G/NB-IOT/LTE-M |
| Europe | Gibraltar | Gibtelecom Ltd. | 3G |
| Europe | Greece | WIND Hellas Telecommunications S.A. | 2G/3G/4G/5G |
| Europe | Greece | Vodafone-Panafon SA | 2G/3G/4G/5G/NB-IOT/LTE-M |
| Europe | Hungary | Telenor Hungary Ltd. (former: Pannon GSM Telekommunication) | 2G/4G/5G |
| Europe | Hungary | Vodafone Hungary Ltd. | 2G/4G/LTE-M/5G |
| Europe | Iceland | Siminn / Iceland Telecom Ltd. | 2G/3G/4G/5G |
| Europe | Iceland | Three Ireland (Hutchison) Limited | 2G/3G/4G/5G |
| Europe | Ireland | Meteor Mobile Communications Ltd. | 2G/3G/4G/5G |
| Europe | Ireland | Vodafone IE (Ireland) Ltd. | 2G/3G/4G/5G |
| Europe | Italy | Wind Tre S.p.A. | 2G/3G/4G |
| Europe | Italy | Vodafone Omnitel N.V. | 2G/4G/NB-IOT/5G |
| Europe | Italy | ILIAD Italia S.p.A. | 3G/4G |
| Europe | Italy | TIM Italy | 2G/4G/5G |
| Europe | Latvia | Tele2 Latvia | 2G/3G/4G/5G |
| Europe | Latvia | Latvian Mobile Telephone Co. | 2G/3G/4G/LTE-M/NB-IOT |
| Europe | Liechtenstein | Telecom Liechtenstein AG | 2G/3G/4G/5G |
| Europe | Liechtenstein | Salt (Liechtenstein) AG | 2G/3G/4G |
| Europe | Lithuania | Tele2 UAB | 2G/3G/4G/5G |
| Europe | Lithuania | Telia Lietuva AB | 2G/4G/5G |
| Europe | Luxembourg | POST Luxembourg | 2G/4G/LTE-M/5G |
| Europe | Luxembourg | Tango S.A. | 2G/4G/5G |
| Europe | Luxembourg | Orange Communication Luxembourg S.A. | 2G/3G/4G/5G |
| Europe | Malta | Vodafone Malta Ltd. | 2G/3G/4G |
| Europe | Malta | GO Plc | 2G/3G/4G/5G |
| Europe | Netherlands | KPN | 2G/4G/LTE-M |
| Europe | Netherlands | Vodafone Libertel BV | 2G/4G/5G/NB-IOT/LTE-M |
| Europe | Norway | Telia Norge AS | 2G/4G/5G/LTE-M |
| Europe | Norway | Telenor Norge | 2G/4G/LTE-M/5G/NB-IOT |
| Europe | Poland | ORANGE (PTK Centertel Sp. z.o.o.) | 2G/3G/4G/5G/LTE-M |
| Europe | Poland | Polkomtel S.A. | 2G/3G/4G/5G |
| Europe | Portugal | NOS Comunicacoes sa | 2G/3G/4G/5G/LTE-M |
| Europe | Portugal | Vodafone Telecel | 2G/3G/4G |
| Europe | Portugal | MEO - Servicos de Comunicacoes e Multimedia-- S.A. | 2G/4G/LTE-M/5G |
| Europe | Reunion | Orange Reunion | 2G/3G/4G |
| Europe | Romania | Vodafone Romania SA | 2G/3G/4G/5G/LTE-M/NB-IOT |
| Europe | Romania | Orange Romania SA | 2G/3G/4G/LTE-M/5G |
| Europe | Slovakia | O2 Slovakia-- s.r.o. | 2G/3G/4G/5G |
| Europe | Slovakia | Orange Slovensko | 2G/4G/LTE-M/5G |
| Europe | Slovenia | Telekom Slovenije d.d. | 2G/4G/5G |
| Europe | Slovenia | A1 Slovenija, d.d | 2G/3G/4G |
| Europe | Spain | Vodafone Espana S.A.U. | 2G/4G/NB-IOT/LTE-M/5G |
| Europe | Spain | FRANCE TELECOM ESPAÑA (ORANGE) SA | 2G/3G/4G/5G/LTE-M |
| Europe | Spain | Telefonica de Espana S.A.U. | 2G/3G/4G/5G/LTE-M/NB-IOT |
| Europe | Spain | Xfera Moviles S.A. (Yoigo) | 2G/3G/4G |
| Europe | Sweden | Hi3G Access AB (3) | 2G/3G/4G/5G/LTE-M/NB-IOT |
| Europe | Sweden | Telia Sweden | 2G/4G/LTE-M |
| Europe | Sweden | Telenor Sverige AB | 2G/3G/4G/LTE-M/5G/NB-IOT |
| Europe | Switzerland | Salt | 2G/3G/4G/5G |
| Europe | Switzerland | Sunrise Communications AG | 2G/3G/4G/5G/LTE-M |
| Europe | United Kingdom | Vodafone UK Ltd. | 2G/4G/5G/NB-IOT |
| Europe | United Kingdom | Hutchison 3G UK Ltd | 3G/4G/5G |
| Europe | United Kingdom | TELEFONICA UK Ltd. (O2 UK) | 2G/3G/4G/5G |
| Europe | United Kingdom | EE Limited | 2G/3G/4G/5G |
| Asia | China | China Unicom | 2G/3G/4G/5G |
| Asia | China | China Mobile | 2G/3G/4G/5G |
| Asia | China | China Telecom | 2G/3G/4G/5G |
| Asia | Japan | NTT DoCoMo Inc. | 3G/4G/5G |
| Asia | Japan | Softbank Corp | 4G/LTE-M/5G |
| Asia | Japan | KDDI | 4G |

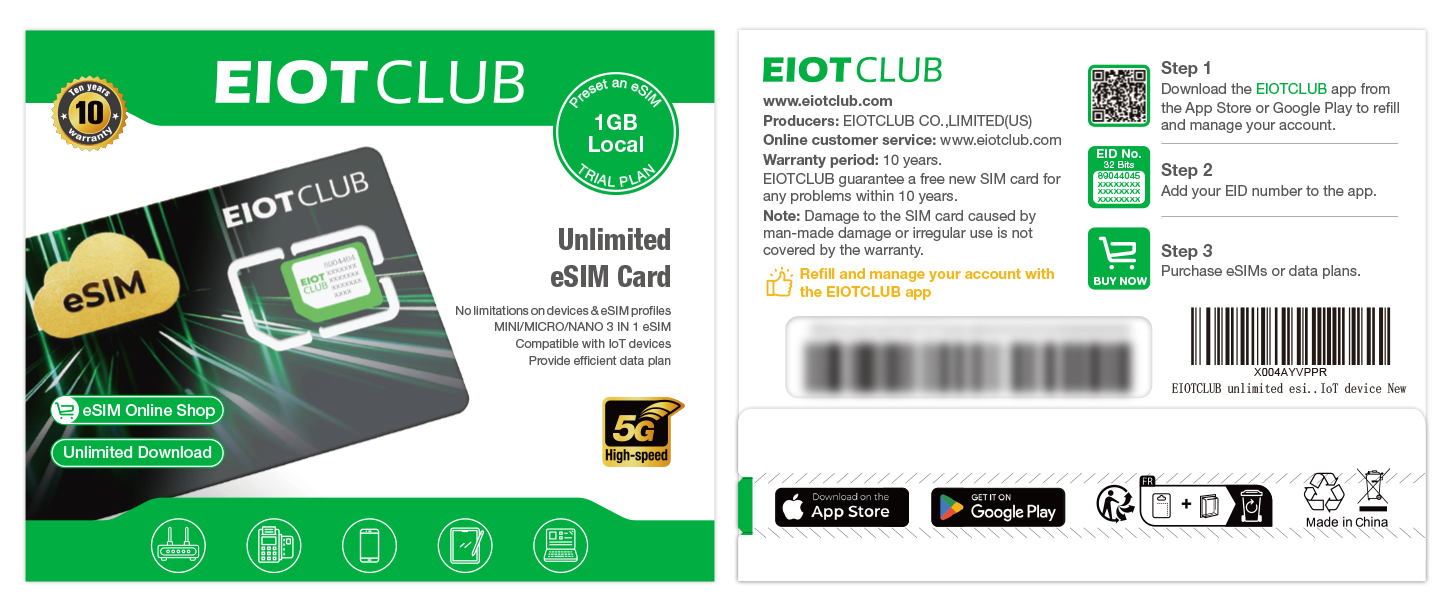

Package specification
PN: 2.00.030000026 SKU: X004AYVSC7 Preset：100MB/30day Global plan-T-class1 Inside the packaging: 1 SIM card (PN: 2.01.040001169)
PN: 2.00.030000027 SKU: X004AYVPPR Preset：1GB/30day Local plan-T-class1 Inside the packaging: 1 SIM card (PN: 2.01.040001169)
PN: 2.00.030000028 SKU: X004AYVSY5 Preset：1GB/360day -Local 100MB/360day-Global plan-T-class1 Inside the packaging: 1 SIM card (PN: 2.01.040001169)
