M7 POS Quick Start Guide

This SIM card is specially developed for TOSHIBA mPOS devices, providing network backup with seamless automatic switching among multiple U.S. carriers (AT&T, T-Mobile, Verizon) to keep you connected at all times.

1.Before You Start

Ensure the IoT SIM card is properly inserted into M7 device.

Make sure the device is powered on.

2.Quick Setup (Most Users Only Need This Section)

Your device already includes the correct APN configuration, and the SIM is ready to use.
Only one action is required:

➡ Enable "Data Roaming" on your device

3.Why Data Roaming Must Be Enabled

The SIM card is provided by EIOTCLUB and uses data roaming to enable mobile network connectivity.
Without enabling data roaming:

• The device cannot access mobile data.
• The device may not be able to go online.

Why this matters:
The SIM is designed to access available mobile networks through roaming in order to establish a data connection.
Data roaming must be enabled for the SIM to connect and maintain mobile data access during normal operation.
In short, data roaming is required for the mPOS to establish and maintain mobile connectivity.

4.Enabling Data Roaming Does Not Change Your Data Plan

All data usage is based on the data plan provided with the SIM.Enabling data roaming allows the device to access mobile networks and does not, by itself,modify the data plan or billing terms.

5.How to Top-Up

(1)Download the App
Search EIOTCLUB for our app in the Appstore or Google Play Store. Install and open it.

(2)Find Your Number

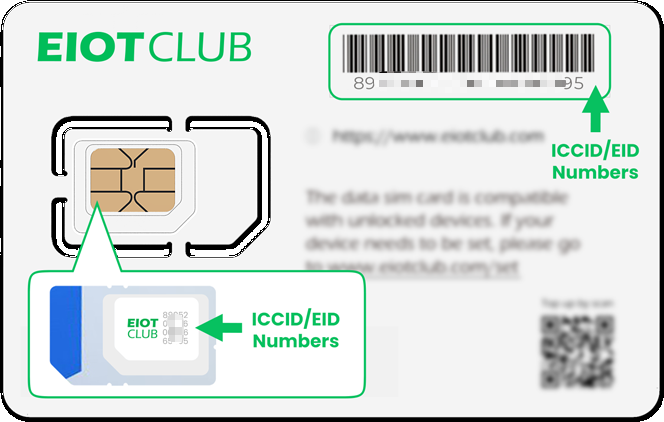

Locate the ICCID or EID on your card.
You can find it on:

(3)Top-Up Enter the ICCID or EID in the app. The system will automatically recognize your SIM card.

Select a data plan and complete the top-up.

You can also top up on our website at: https://www.eiotclub.com/pages/refill

Tip: Use the Last 5–6 Digits of the IMEI to Name Your SIM Card

For easier management, you can name each SIM card in the app using the last 5–6 digits of the device's IMEI .
This makes it simple to identify which SIM belongs to which POS terminal without using the full IMEI.

6.How to Restore the Pre-Configured APN After Accidental Changes or Deletion

If Your device cannot connect to the network after enabling roaming, or the APN was accidentally deleted/reset.
Only follow these steps: First, confirm theFIRST SIX DIGITS of your SIM card's ICCID. The following are the corresponding APN names for each number range.

APN Information:

ICCID Starting with	Name	APN
891030xxx	altanwifi	altanwifi
893204xxx	america.bics	america.bics
898523xxx	wbdata	wbdata

Follow the steps below to access the APN settings and enter the corresponding APN. Only fill in the Name & APN field; leave all other fields blank or at default.

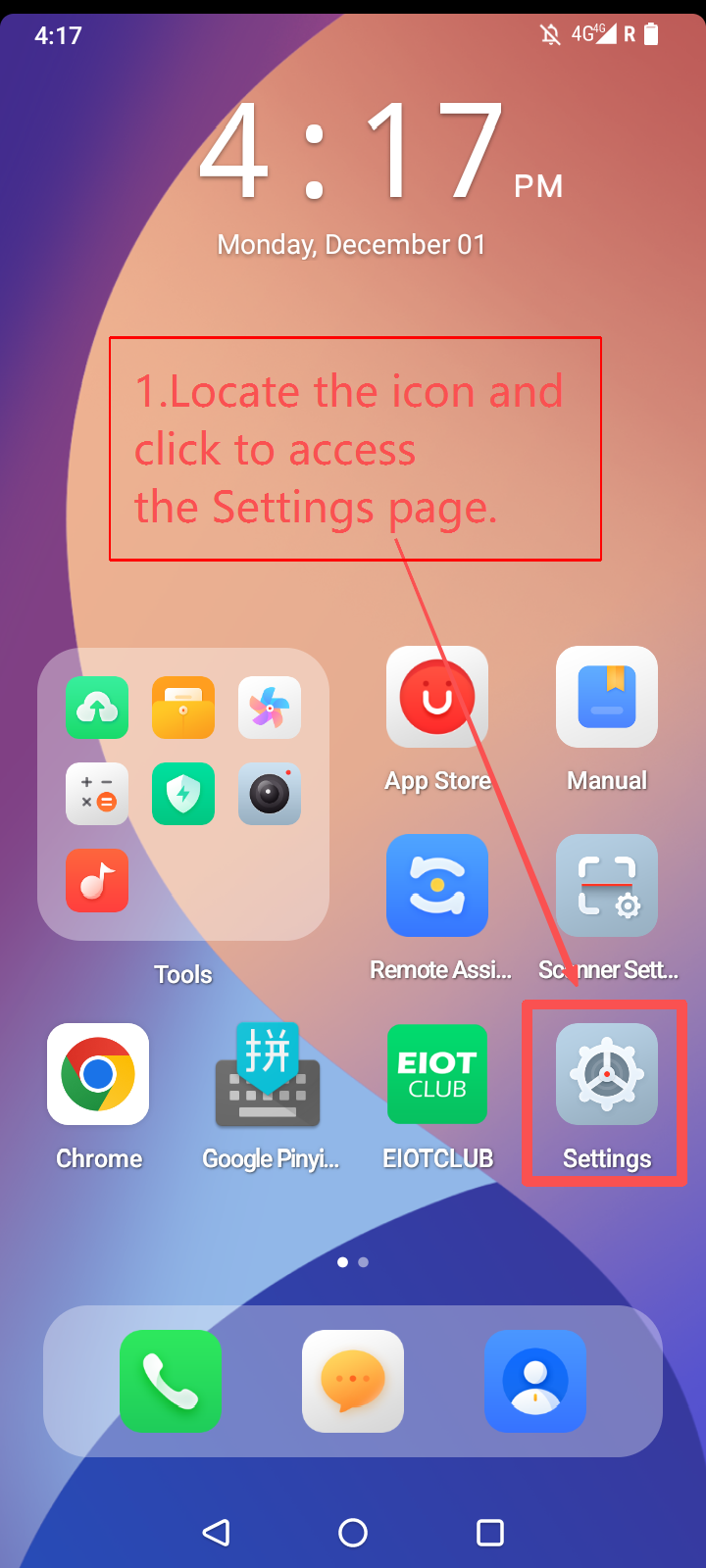

Step 1:Go to Settings

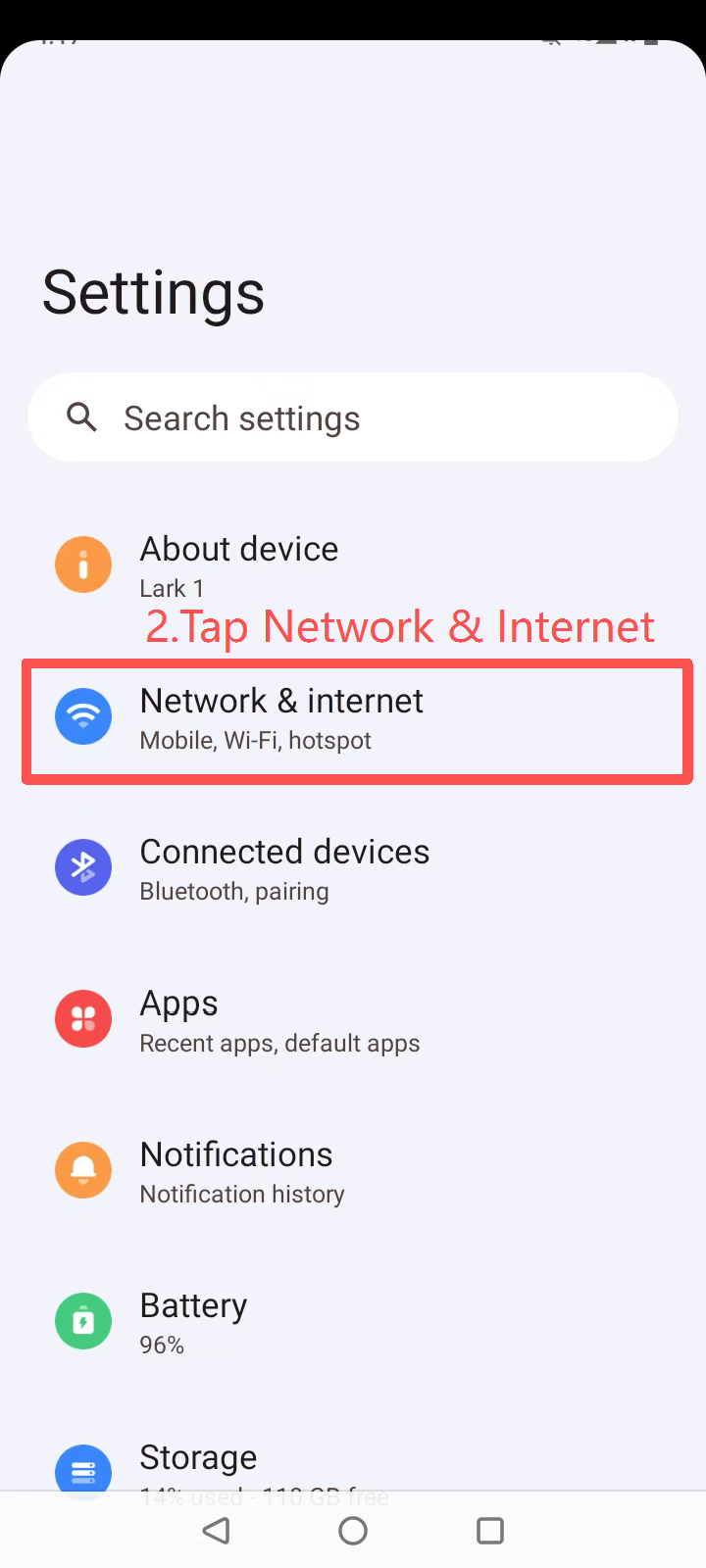

Step 2:Network & Internet

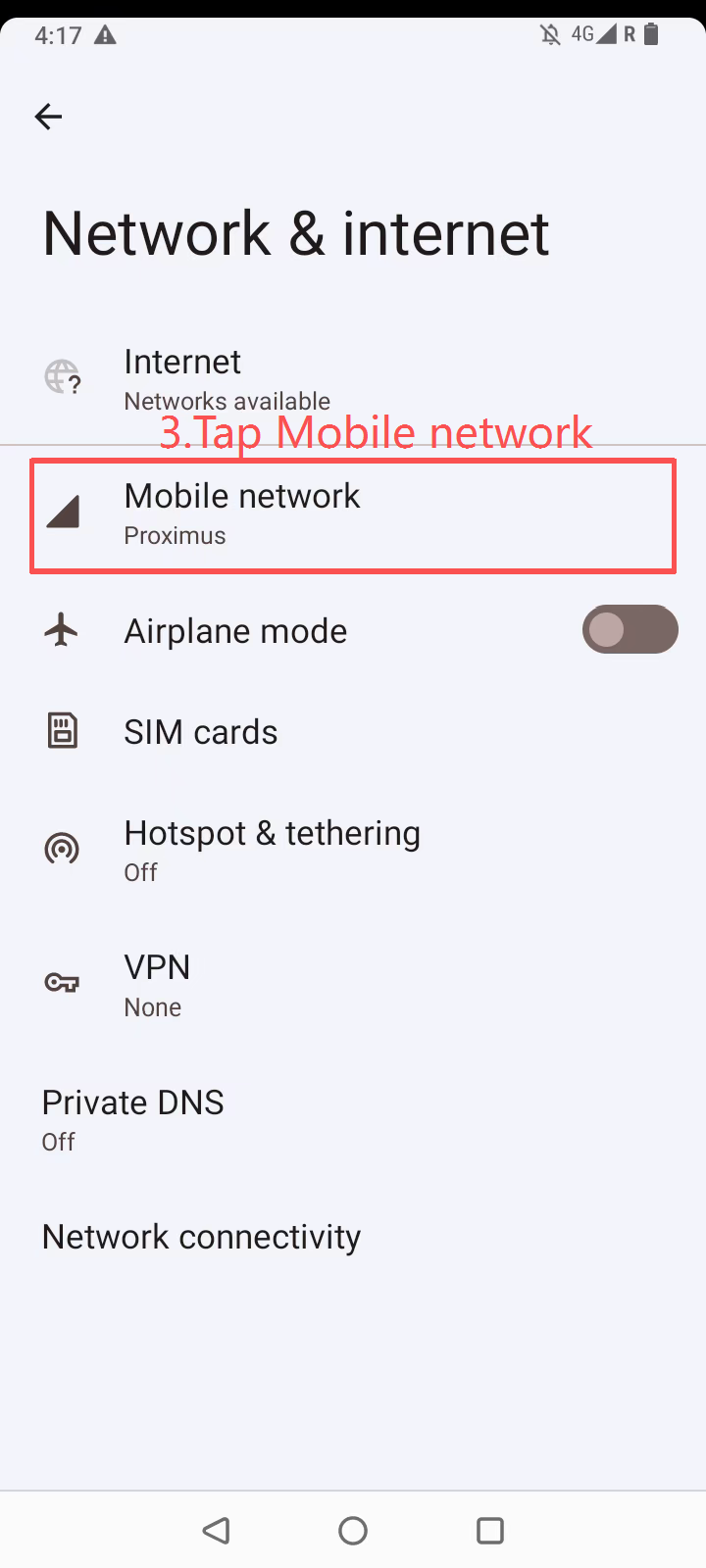

Step 3:Tap Mobile Network

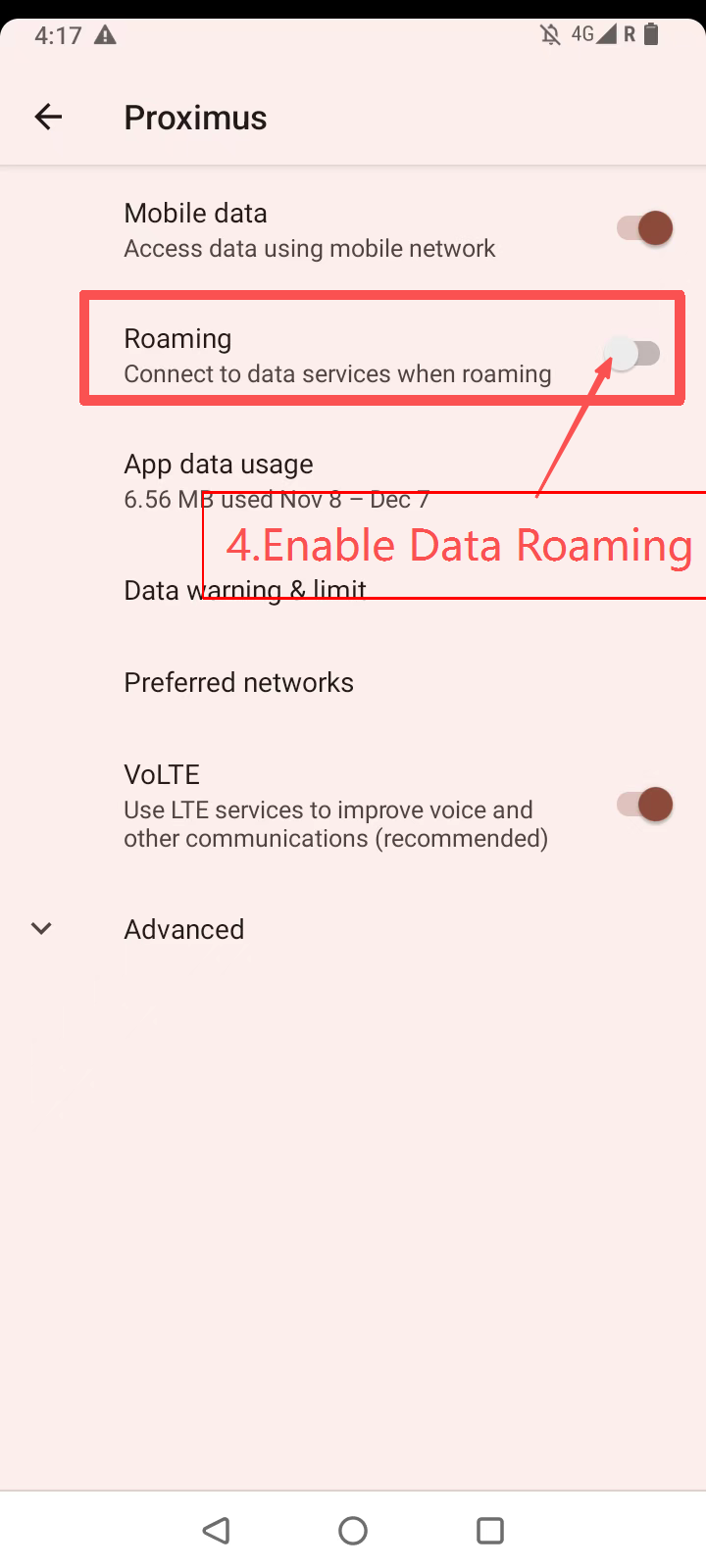

Step 4:Enable Roaming

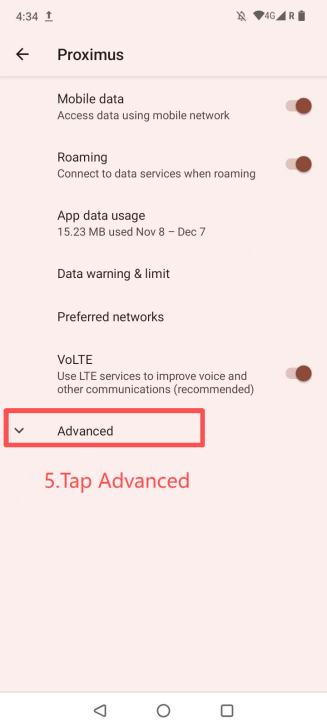

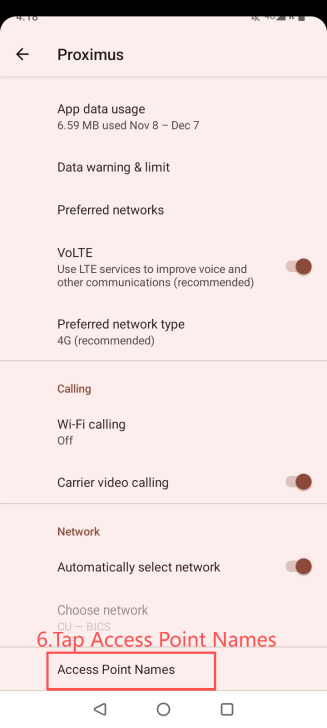

Step 5:Tap Advanced →Step 6:Access Point Names (APN)

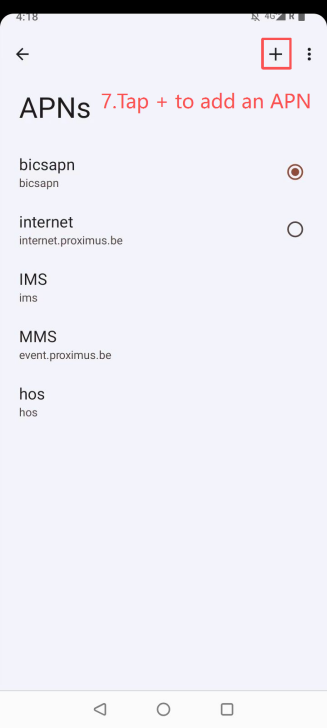

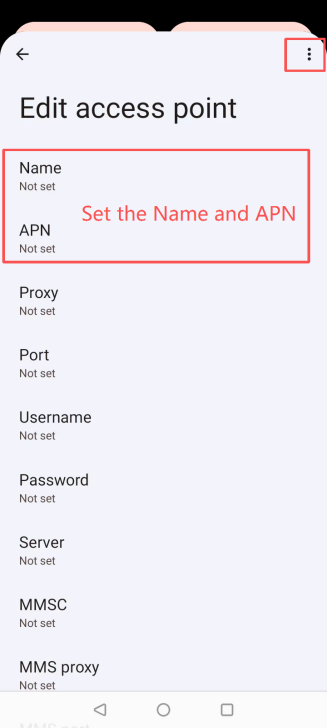

Step 7:Tap Add→Enter the APN information above

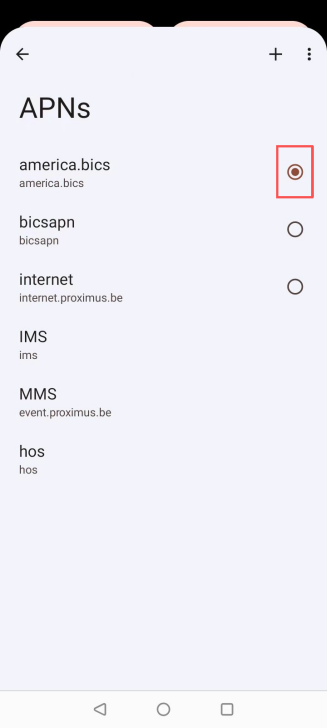

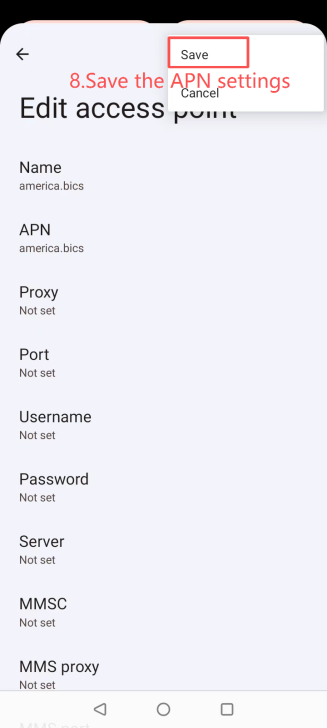

Step 8:Save→Select the newly created APN

Step 9：After completing the APN setup, please ensure that DATA ROAMING is properly enabled.

7.Bulk SIM Management

If you need to manage a large number of SIM cards, we offer a CMP (Connectivity Management Platform) to help you monitor usage, status, and device activity.
For access or assistance, please contact us at business@eiotclub.com

8.Troubleshooting

❌ No network → Check roaming is ON
❌ APN missing → Restore APN following Section 6
❌ Still offline → Restart device, then check signal
If issues continue, contact customer support

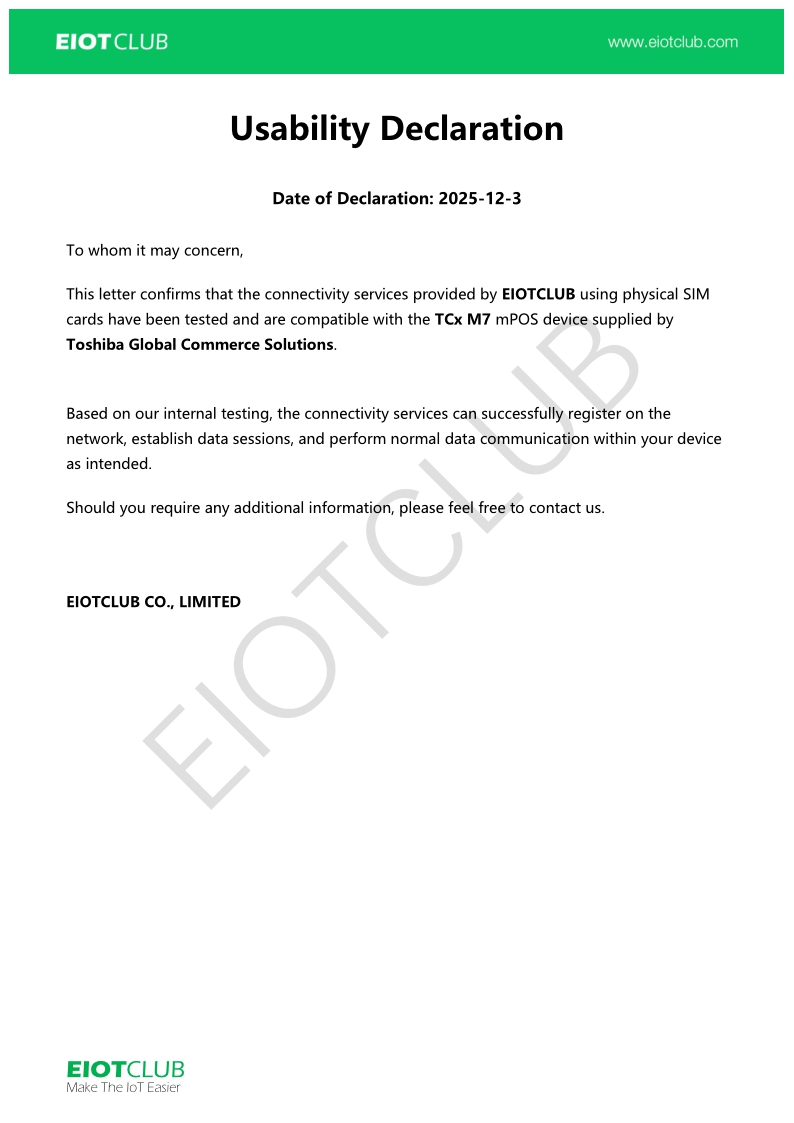

9.Usability Declaration

10.Contact

Website:www.eiotclub.com
Business: business@eiotclub.com
Technical Support: info@eiotclub.com
