Triple play(TN-V1-CC) Product Specifications
Basic Specifications
| project | Specification Description |
|---|---|
| Function | Traffic: support 2G/3G/4G/cat M networking SMS: not supported by default Call: not supported |
| network | See EIOTCLUB APN Network Coverage Table |
| Card Type | Consumer grade plug-in Nano card Support Nano-SIM (4FF) |
| contact | 6 pins |
| storage | 64KB |
| standard | ETSI TS 102 221 (Class A, B, C) ISO7816 |
| Material | PVC/ABS card base material for SIM card |
| temperature range | Working temperature -25 ℃ ~85 ℃ |
| size | 85.6mm * 53.98mm * 0.76mm |
| weight | about 3 grams |
Selection table
| Region | PN | APN | Carrier | Network Band |
|---|---|---|---|---|
| U.S. | 2.00.040001221/ 2.01.040001186 | altanwifi | Verizon, AT&T, T- mobile | B2, B4, B5, B12, B13, B14, B17, B25, B26, B30, B66, B71 |
| Canada | 2.00.040001221 | altanwifi | Rogers, Bell, telus | B2, B4, B7, B12, B17, B29, B40, B42, B66, B71 |
| Japan | 2.00.040001221 | mobile | KDDI, softbank | B1,B3, B5, B7, B19, B20, B21, B28, B42 |
| Indonesia | 2.00.040001221 | mobile | TELKOMSEL | B1, B3, B5, B8, B28, B31, B40 |
| Thailand | 2.00.040001221 | mobile | AIS GSM, DTAC | B1, B3, B8, B40, B41 |
| Malaysia | 2.00.040001221 | mobile | Maxis, DiGi | B1, B3, B7, B8, B28 |
| Singapore | 2.00.040001221 | mobile | SingTel, StarHub | B1, B3, B7, B8, B38 |
| HK | 2.00.040001221 | mobile | CSL | B3, B7, B8, B40 |
| Macao | 2.00.040001221 | mobile | CTM | B1, B3, B7, B8, B40 |
| Taiwan | 2.00.040001221 | mobile | Chunghwa Telecom , Taiwan Mobile | B1, B3, B7, B8 |
Appearance specification

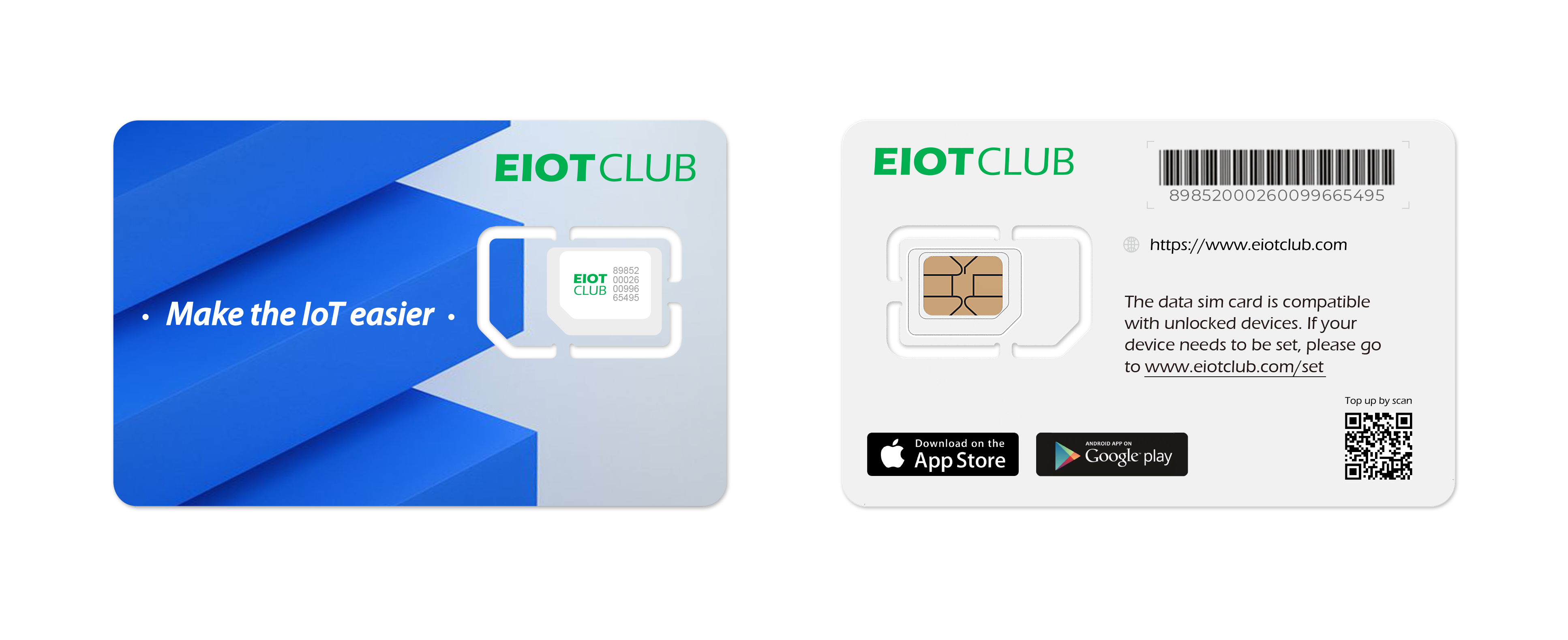

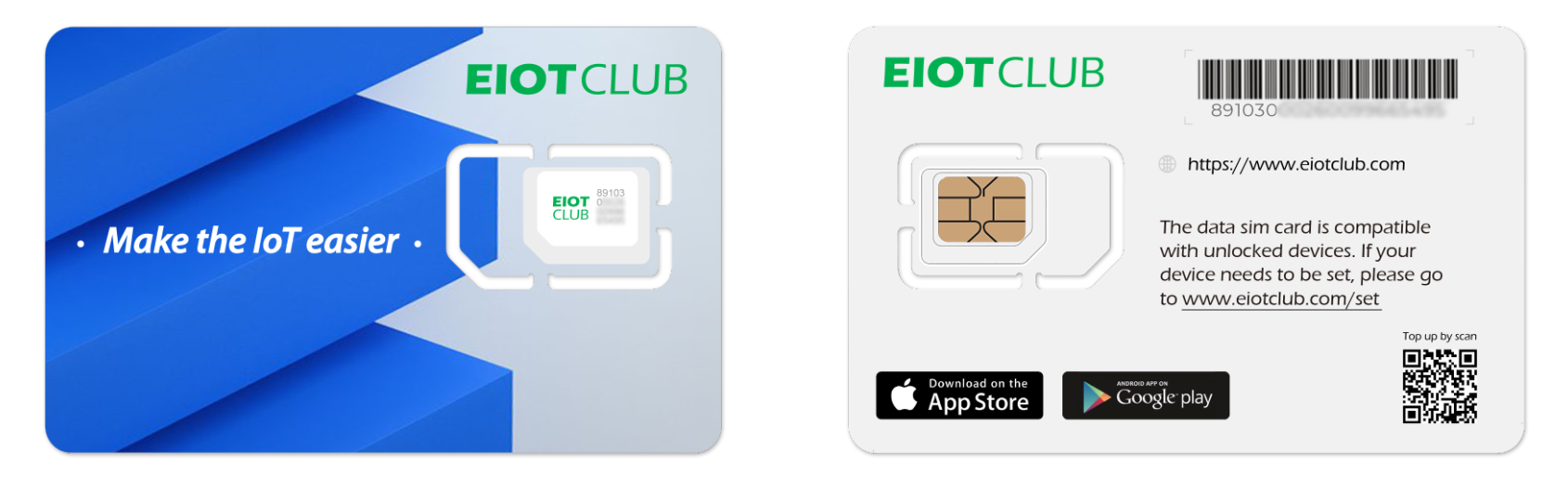

Silkscreen three-cut card
PN: 2.01.040001186

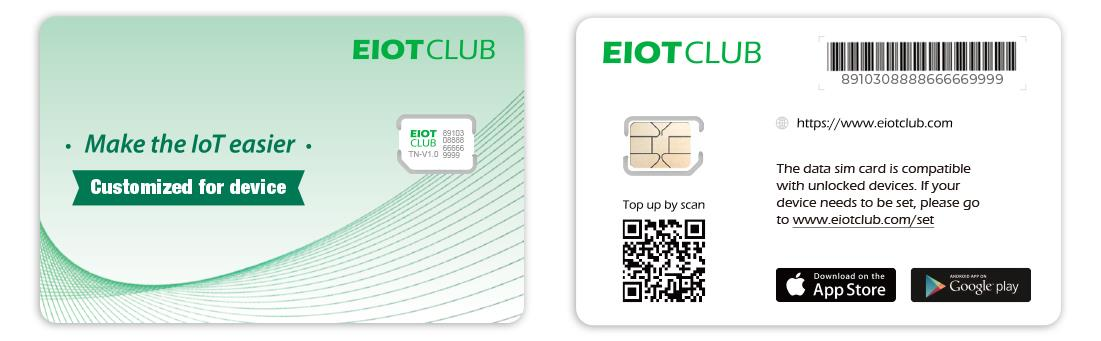

Silkscreen nano card
PN: 2.00.040001221
Specifications：1FF Full-size ISO/IEC 7810:20003,ID-1 Length：85.60mm tolerance： 0.12mm Width：53.98mm tolerance： 0.16mm Thickness：0.76mm tolerance： 0.08mm
APN List
| The first five digits of the IMSI number (MCCMNC) | First six digits of ICCID number | APN |
|---|---|---|
| 45400 | 891030 | altanwifi/mobile |
Package specification
Introduction to Paper Packaging
| products PN Paper packaged | Description | SKU | SIM inside the packaging |
|---|---|---|---|
| 2.00.060000055 | TRIPAL-PLAY data nano-sim TN-V1.0 card 100MB TRIAL Paper Bag | 746559202716 | 2.00.040001221 |
| 2.00.060000056 | TRIPAL-PLAY data nano-sim TN-V1.0 card 300MB TRIAL Paper Bag | 746559202693 | 2.00.040001221 |
| 2.00.060000063 | TRIPAL-PLAY data sim card TN-V1 100MB Paper Bag | X00399Q9P5 | 2.01.040001186 |
| 2.00.060000065 | TRIPAL-PLAY data sim card TN-V1 300MB Paper Bag | 746559202655 | 2.01.040001186 |
| 2.00.060000067 | Canada data SIM card TN-V1 300MB paper bag | 748743645958 | 2.01.040001186 |
| 2.00.060000068 | Indonesia data SIM card TN-V1 300MB Trial Paper Bag | 0748743645989 | 2.01.040001186 |
| 2.00.060000069 | Thailand data SIM card TN-V1 300MB Trial Paper Bag | 0748743645996 | 2.01.040001186 |
| 2.00.060000070 | TRIPAL-PLAY data sim card 100MB TRIAL PLAN lite paper bag | 746559202716 | 2.00.040001221 |
| 2.00.060000073 | Japan data SIM card 100MB TN-V1 lite paper bag | 0746559679808 | 2.01.040001186 |
| 2.00.060000082 | Indonesia data SIM card TN-V1 100MB Trial Paper Bag | 0748743645989 | 2.01.040001186 |

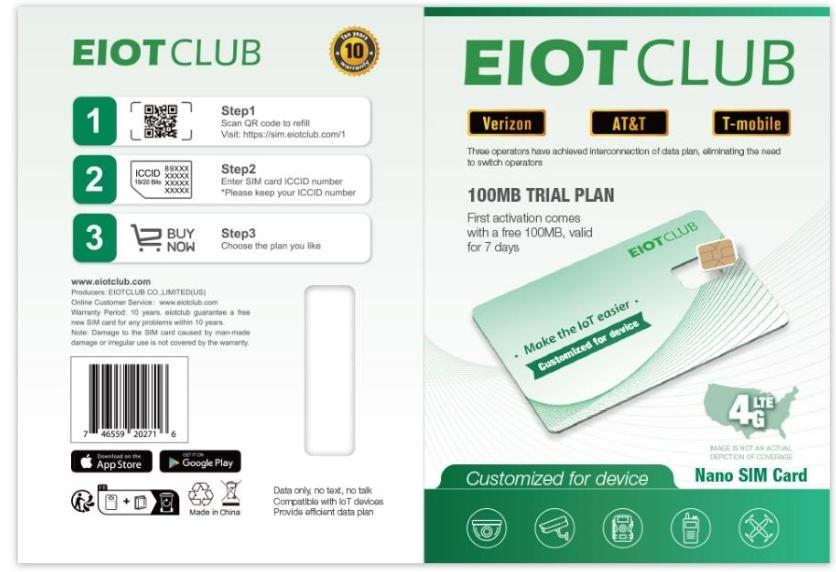

PN: 2.00.060000055 SKU: 746559202716 Trial plan:100MB Networks: Verizon, AT&T, T-mobile Inside the packaging: 1 SIM card (PN: 2.00.040001221)

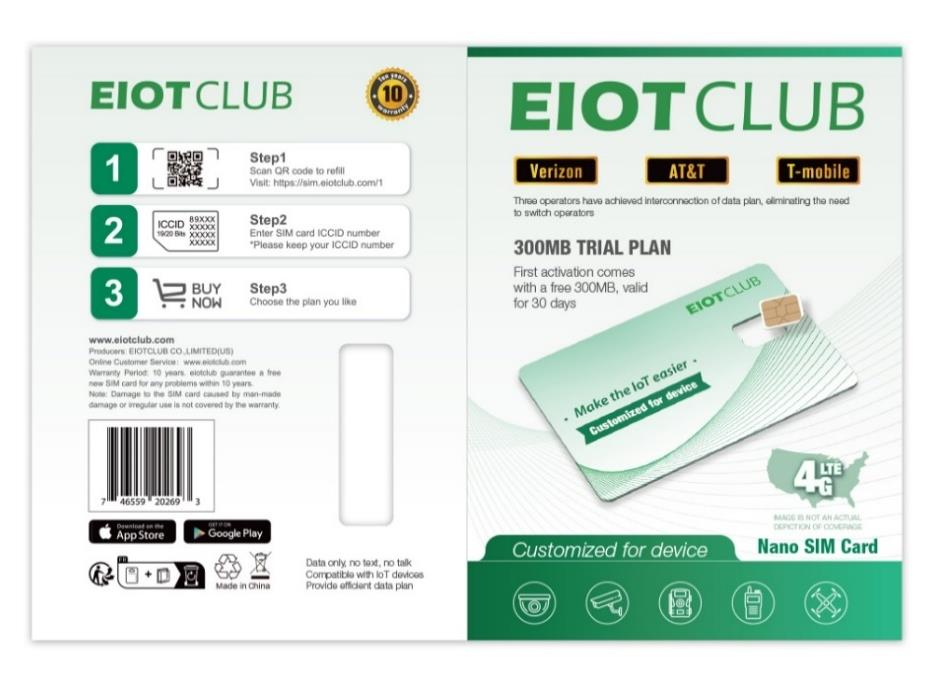

PN: 2.00.060000056 SKU: 746559202693 Trial plan:300MB Networks: Verizon, AT&T, T-mobile Inside the packaging: 1 SIM card (PN: 2.00.040001221)

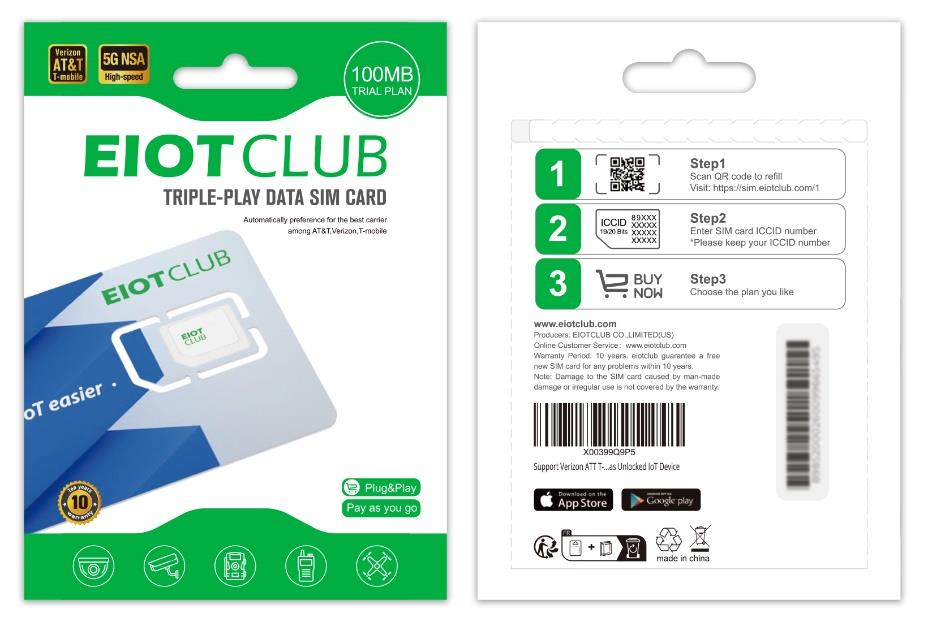

PN: 2.00.060000063 SKU: X00399Q9P5 Trial plan:100MB Networks: Verizon, AT&T, T-mobile Inside the packaging: 1 SIM card (PN: 2.00.040001221)

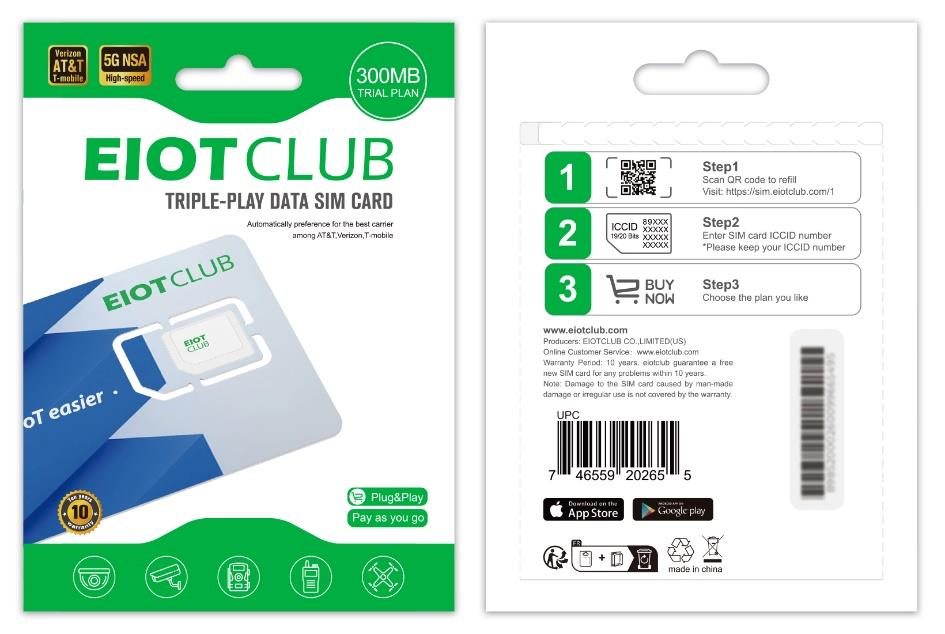

PN: 2.00.060000065 SKU: 746559202655 Trial plan:300MB Networks: Verizon, AT&T, T-mobile Inside the packaging: 1 SIM card (PN: 2.00.040001221)

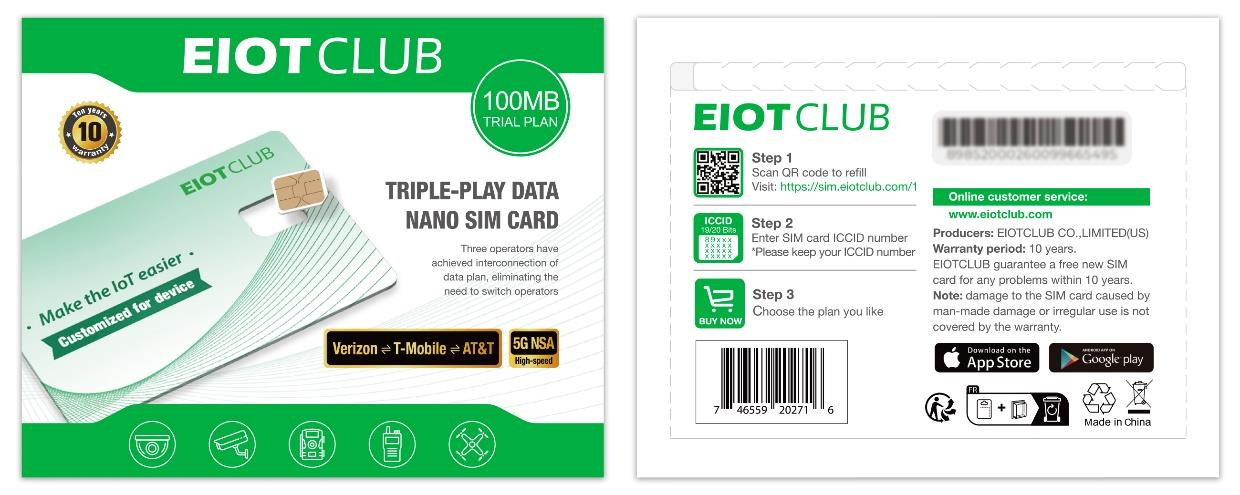

PN: 2.00.060000070 SKU: 746559202716 Trial plan:100MB Networks: Verizon, AT&T, T-mobile

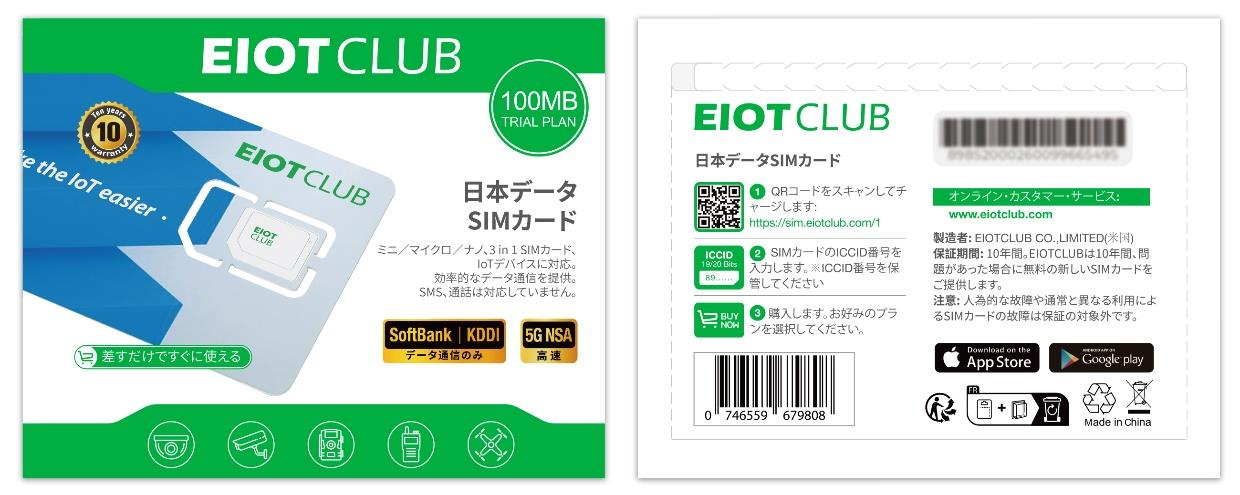

PN: 2.00.060000073 SKU: 0746559679808 Trial plan:100MB Networks: KDDI, softbank
Network Coverage Table
| Country | Network | Supported Network Types |
|---|---|---|
| Australia | YES OPTUS | 2G/3G/4G/5G |
| Australia | Telstra MobileNet | 2G/3G/4G/5G/NB-IOT |
| Canada | Bell Mobility | 3G/4G/LTE-M/5G |
| Canada | Rogers Wireless Inc | 2G/3G/4G/LTE-M/5G |
| Canada | TELUS Communications | 2G/3G/4G/5G |
| United States | Verizon Wireless | 2G/3G/4G/5G |
| United States | AT&T | 4G/LTE-M/5G/NB-IOT |
| United States | T-Mobile USA | 2G/3G/4G/LTE-M/5G/NB-IOT |
| China | China Telecom | 2G/3G/4G/5G/NB-IOT |
| China | CHINA MOBILE | 2G/3G/4G/5G/NB-IOT |
| China | CHINA UNICOM GSM | 2G/3G/4G/5G |
| Hong Kong | CSL | 2G/3G/4G/5G |
| India | IDEA Cellular | 2G/3G/4G/5G |
| India | Vodafone | 2G/3G/4G/5G |
| Indonesia | TELKOMSEL | 2G/3G/4G/5G |
| Japan | KDDI Corporation | 2G/3G/4G/5G |
| Japan | SoftBank | 4G/LTE-M/5G |
| Malaysia | Maxis | 2G/3G/4G/5G |
| Malaysia | DTAC | 2G/3G/4G/5G |
| Macao | CTM | 2G/3G/4G/5G |
| Nigeria | Airtel Nigeria | 2G/3G/4G/5G |
| Nigeria | Glo Mobile | 2G/3G/4G |
| Philippines | Globe Telecom | 2G/3G/4G/5G |
| Philippines | SMART Gold | 2G/3G/4G/5G |
| Singapore | SingTel | 2G/3G/4G/5G |
| Singapore | StarHub | 2G/3G/4G/5G |
| Taiwan | Chunghwa Telecom | 2G/3G/4G/5G |
| Thailand | AIS GSM | 2G/3G/4G/5G |
| Thailand | DTAC | 2G/3G/4G/5G |
| Vietnam | Hanoi Telecom Joint Stock Company | 2G/3G/4G/5G |
| Vietnam | Mobifone | 2G/3G/4G/5G |
| Turkey | Turkcell Iletisim Hizmetleri | 4G/LTE-M/5G/NB-IOT |
| Turkey | Vodafone Turkey | 3G/4G/5G |
| United Kingdom | 3 | 3G/4G/5G |
| Russia | MTS | 2G/3G/4G/5G |
| Russia | Beeline | 2G/3G/4G/5G |
| Saudi Arabia | Mobily | 2G/3G/4G/5G |
