Network Connection Operation Instructions for X10 Series In-Vehicle Infotainment System
Here are the step-by-step instructions for connecting an X10 Series car infotainment system to the internet, broken down by connection type.

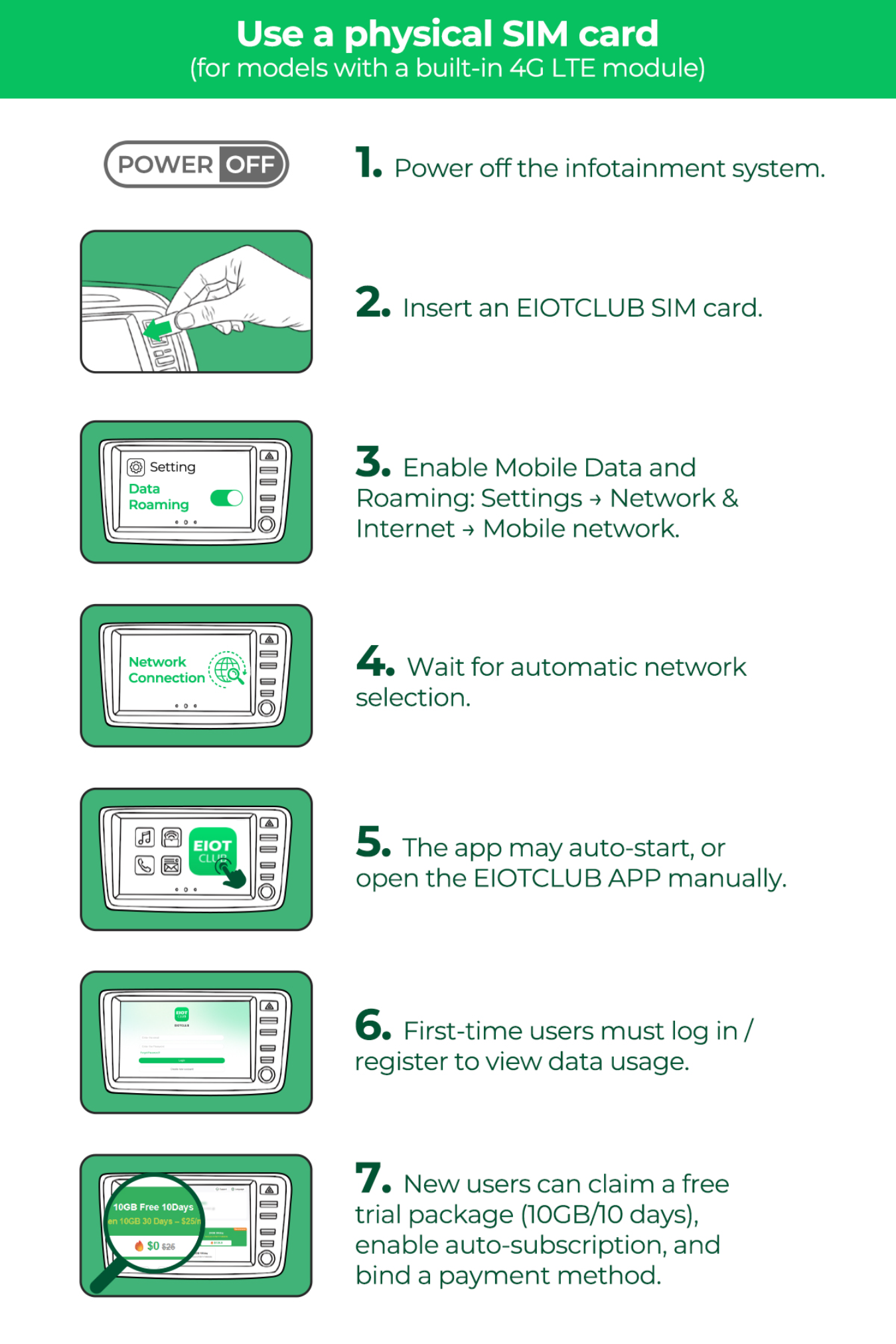

Using a Physical SIM Card (Models with a Built-in 4G LTE Module)
This method lets you use a mobile network for internet access and share it with other devices like phones or tablets via a hotspot.
Steps:
1.Insert the SIM card.
a.Turn off the car's infotainment system. b.Insert an EIOTCLUB SIM card into the SIM card slot. c.Turn the system back on and wait for it to automatically recognize the network.
2.Configure network settings.
a.Go to Settings → Network & Internet → Mobile Network. b.The system should automatically find and select your carrier. c.If not, please manually enter or select the APN (Access Point Name) based on the first six digits of your card number and the region of use. The APN list is as follows.
| FirstsixdigitsofICCID | APN |
|---|---|
| 893204 | bicsapn（Europe/Worldwide）/america.bics（Americas）/asia.bics（Asia and Oceania） |
| 898520 | mobile |
| 891030 | mobile（Asia）/altanwifi（United States） |
| 898523 | wbdata |
3.Confirm the connection.
a.A 4G network icon should appear in the status bar, indicating the system is connected and ready to use the internet.
4.Open the EIOTCLUB app.
a.The device can launch the EIOTCLUB app automatically; or open the EIOTCLUB app directly. b.Navigate to the Recharge page. c.If you're a first-time user, you'll need to log in or register to view data plans and usage.
5.Claim your first-time user offer.
a.New users can get a free trial data pack (10GB/10 days) from the recommended plans. b.You'll need to enable auto-renewal and complete the payment binding process to claim the offer. The system will automatically activate the trial package for you.
6.Stay connected.
a.The EIOTCLUB app will send you notifications in the status bar and emails to your registered address when your data is running low or your plan is about to expire.
Important Notes:
●Make sure your SIM card has an active data plan. ●It may take 1-2 minutes for the system to recognize the SIM card the first time you insert it. ●To avoid losing your connection, check the app's notifications and recharge or renew your plan in advance.
