Japan Triple-Play Pro(TN-V3-W) Product Specifications
Basic Specifications
| project | Specification Description |
|---|---|
| Function | Traffic: support 2G/3G/4G/cat M networking SMS: not supported by default Call: not supported |
| network | See EIOTCLUB Network Coverage Table |
| Card Type | Consumer grade plug-in card three-in-one three-cut card into card Support Full-size (1FF) Support Mini-SIM (2FF) Support Micro-SIM (3FF) Support Nano-SIM (4FF) |
| contact | 6 pins |
| storage | 64KB |
| Standard | ETSI TS 102 221 (Class A, B, C) ISO7816 |
| Material | PVC/ABS card base material for SIM card |
| temperature range | Working temperature -25℃~85℃ |
| size | 85.6mm53.98mm0.76mm |
| weight | about 3 grams |
Selection table
| PN | Preinstalled eSIM Version | Descriptions |
|---|---|---|
| 2.01.040001190 | TN-V3-W | Consumer-grade triple-cut GSMA eUICC,1FF/2FF/3FF/4FF IMSI : 45400/90131/20801/311588/45435/90101 ICCID: 898523 Operational temperature：-20℃~85℃ |

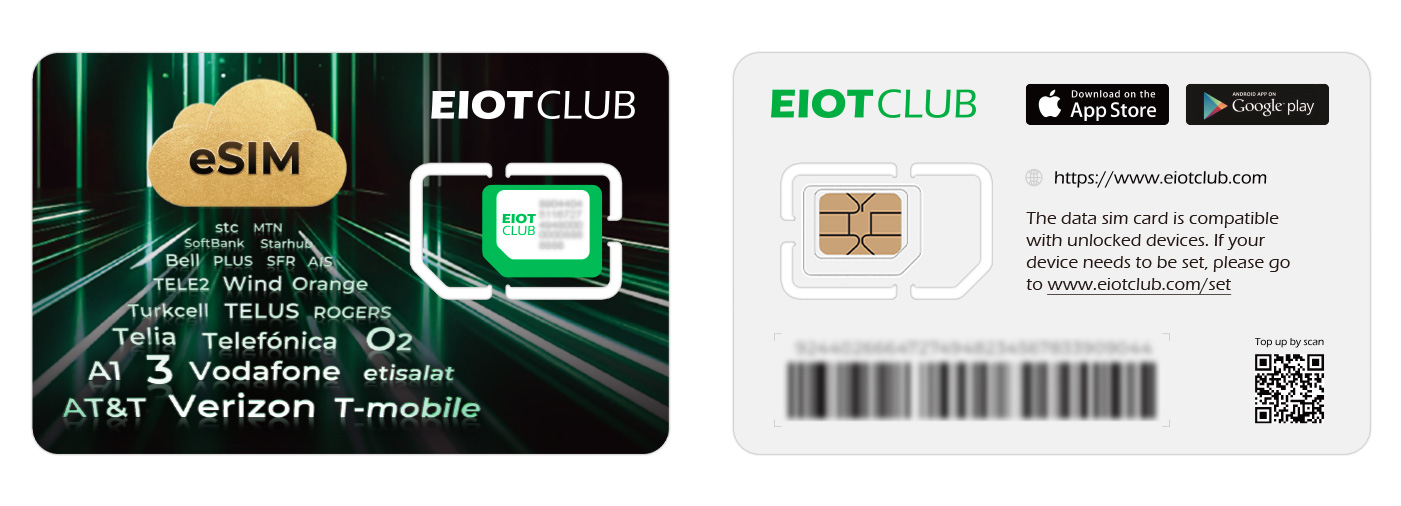

Appearance specification
Specifications:
- 1FF Full-size ISO/IEC 7810:20003,ID-1
- Length:85.60mm tolerance: 0.12mm
- Width:53.98mm tolerance: 0.16mm
- Thickness:0.76mm tolerance: 0.08mm
APN List
| The first five digits of the IMSI number (MCCMNC) |
First six digits of ICCID number | APN |
|---|---|---|
| 45400/90131/20801/311588/45435/90101 | 898523 | wbdata |
Network Coverage Table
Note: SIM has local networks in Japan.
Japan Package Network Coverage table
| Region | Country | Network | Supported Network Types |
|---|---|---|---|
| Asia | Japan | NTT DoCoMo Inc. | 3G/4G/5G |
| Asia | Japan | Softbank Corp | 3G/4G/5G |
| Asia | Japan | KDDI | 4G/5G |

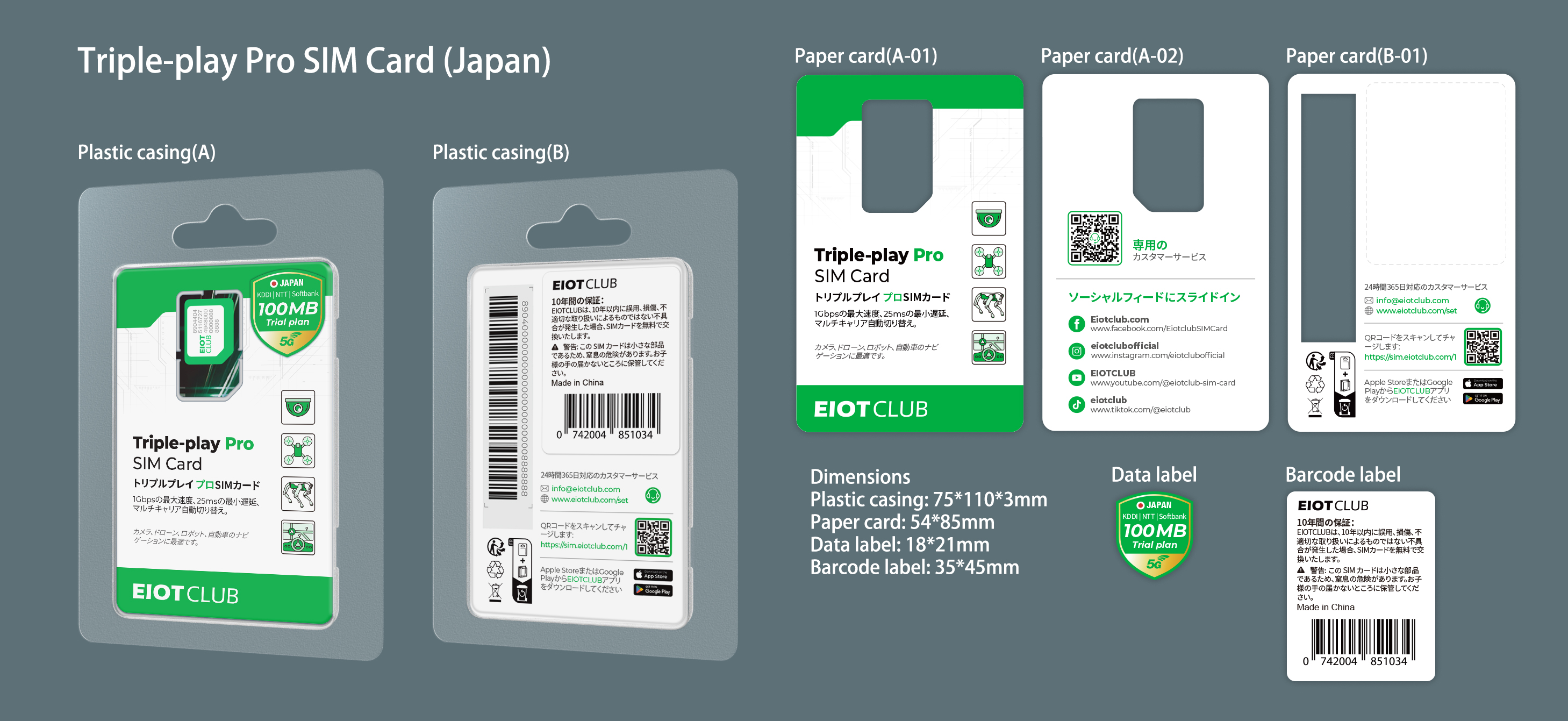

Package specification
